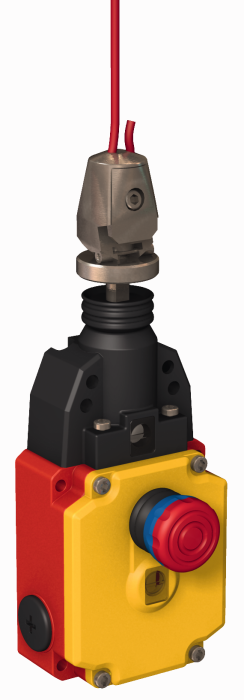

Product RP-RM83F-75LT
Emergency Shutdown
Rope-Pull Safety Switch
Order number: 3081876Alternative order number : 81876
- Rope-pull switch
- Fulfills IEC 60947-5-1
- Integrated E-stop button
- Display of cable tension
- Maximum cable length: 75 m
- Requires accessories kit for draw-wire switch
- 2 safety outputs, NC contact
- 2 auxiliary NO contacts
General data
| EAN | 662488818760 |
| Customs tariff number | 85369095000 |
| Country of origin | DE |
| Weight | 1103 g |
Technical Data
| Function | Rope-pull safety switch |
| Design | Rectangular |
| Output function | 2 x NC contact, Potential-free |
| Electrical connection | Terminal chamber, Terminal box with cable gland |
| Housing material | Metal, Die-cast aluminum alloy |
| Ambient temperature | -30…+80 °C |
| Protection class | IP67 |
