Product VSM4AP6CV50
Photoelectric Sensor
Convergent Mode Sensor
Miniature Sensor
Order number: 3013279Alternative order number : 13279
- Stainless steel housing V2A
- Protection class IP67
- Cable, 2 m, 3-wire
- Lens, sapphire crystal glass
- Operating voltage: 10…30 VDC
- PNP switching output, light operation
General data
| EAN | 662488132798 |
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 85365019000 |
| Country of origin | CH |
| Weight | 28 g |
Technical Data
| Function | Proximity switch |
| Operating mode | Diffuse |
| Design | Tube |

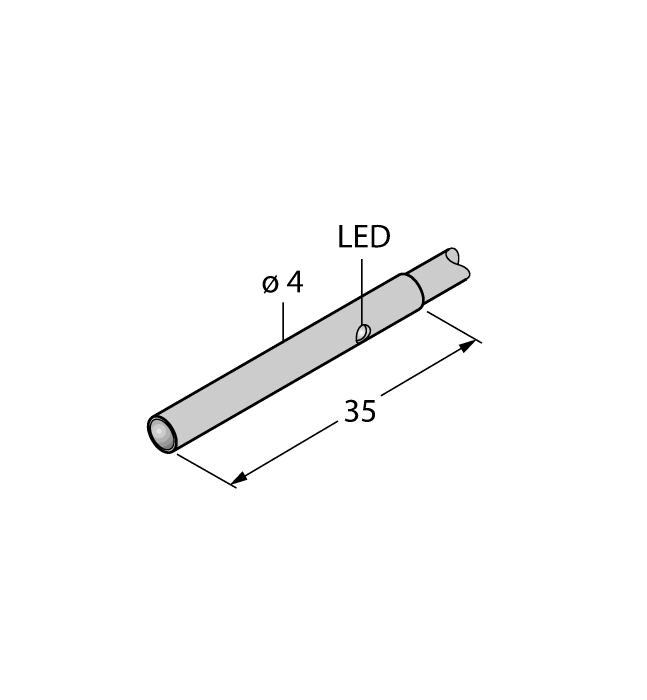

| Construction size | Ø 4 mm |
| Range | 50 mm |
| Focal distance | 50 mm |
| Light type | IR |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, light operation, PNP |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal, Stainless steel |
| Ambient temperature | 0…+55 °C |
| Protection class | IP67 |
