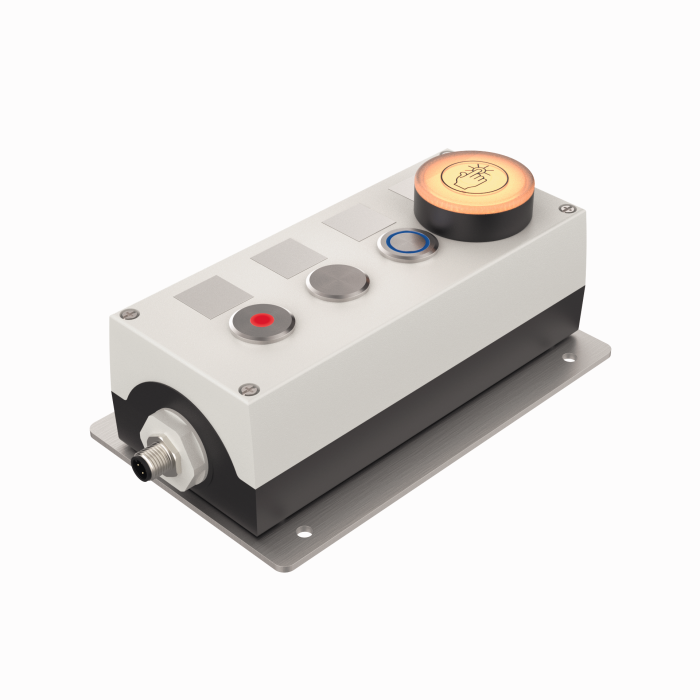

Product OPIL-E4-IO2-FE02
Ford Conveyor Box for Connection to IO-Link Master
1 Lamp, 1 Button with Lamp, 1 Contact Sensor with Lamp
Order number: 100029327- Rugged housing
- Label language: Spanish
- 1 × red status lamp
- 1 × illuminated push button, blue light-up ring
- 1 × illuminated (white) touch button
General data
| EAN | 4047101542820 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85371098990 |
| Country of origin | DE |
| Weight | 300 g |
Technical Data
| Network protocol | IO-Link |
| Signal type | Digital output, Digital input, Digital input/output |
| Ambient temperature | -40…+70 °C |
| Protection class | IP54 |
