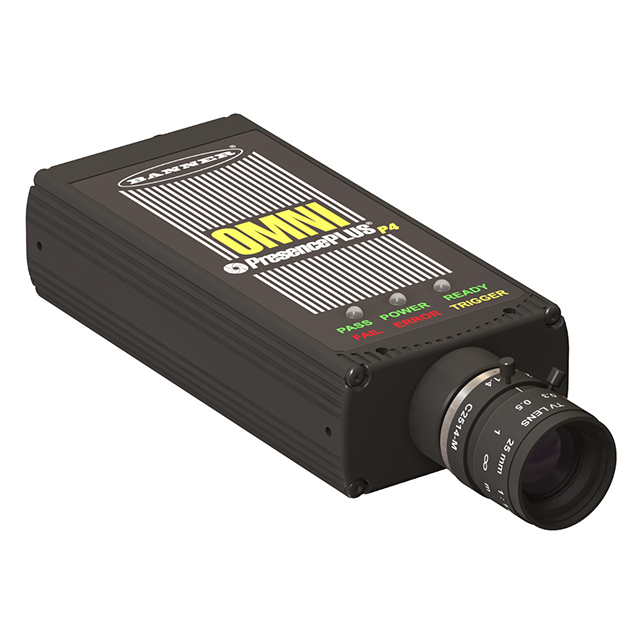

Product P4OI-BC
Image Processing
Camera with Integrated Analysis
Order number: 3075397Alternative order number : 75397
- Full scope of function, AREA, EDGE and GEO
- 1/3“ CMOS, 752x480 pixels
- RGB- / HSI color space
- One-piece design with camera and integrated controller
- Lens connection in longitudinal axis of housing
- protection class IP20
- Lens to be ordered separately
- Operating voltage: 10…30 VDC via M12 x 1 male, 12-pin
- External trigger input
- External strobe output, M8x1, 3-pin
- EtherNet/IP and Modbus TCP interface via RJ45
- RS232 data communication
- Coaxial BNC video connection cable
