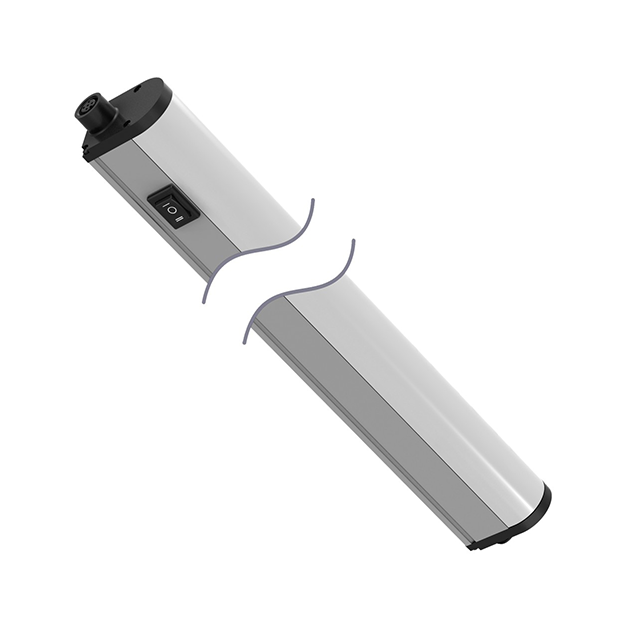

Product WLB32C285PBQ
LED Linear Light
In the Metal Housing
Order number: 3087481Alternative order number : 87481
- Cascadable via M12 × 1 female connector, 4-pin
- ON/OFF switch
- Operating voltage: 12…30 VDC

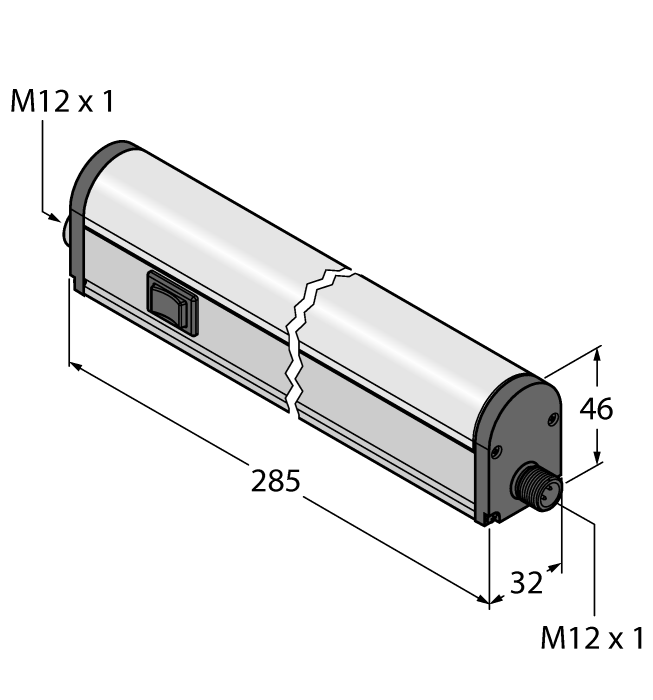

- Light beam: 285 mm
- Housing length: 320 mm
- Color: White
- M12 x 1 connector
General data
| EAN | 662488874810 |
| eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
| Customs tariff number | 94054239900 |
| Country of origin | MX |
| Weight | 361 g |
Technical Data
| Function | Linear light |
| Light type | White |
| Number of colors/segments | 1 |
| Dimmable | Two-stage |
| Cascadable | Yes |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, AL |
| Window material | Polycarbonate, diffuse |
| Ambient temperature | -40…+70 °C |
| Protection class | IP50 |
Mounting accessories
|
LMBWLB32
Snap bracket for WLB32 work light, included in the WLB92 scope of delivery |
3090623 |
|
LMBWLB32MAG
Snap bracket for WLB32 work light, for mounting on metal surfaces |
3087851 |
Connectivity accessories
|
RKC4.4T-0.6-RSC4.4T/TEL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 0.6 m, jacket material: PVC, black; cULus approval |
6625206 |
|
RKC4.4T-2/TEL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625013 |
|
WKC4.4T-2/TEL
Connection cable, M12 female connector, angled, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625025 |
