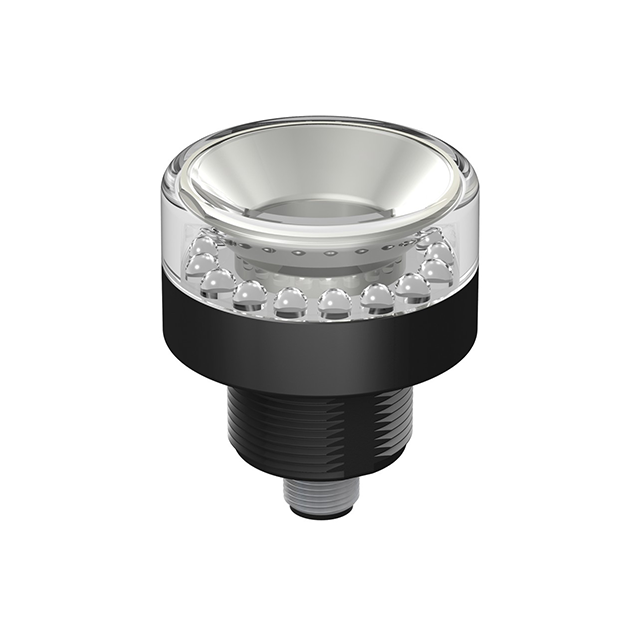

Product K50BCLGBXPQ
LED Signal Light
Beacon
Order number: 3088390Alternative order number : 88390
- LED all-round visible
- Top and side view
- Individually controllable

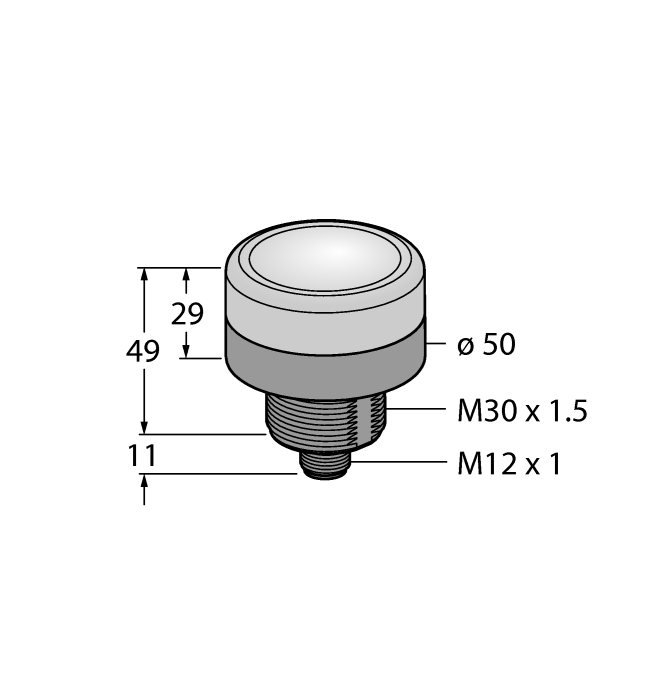

- Screw-in thread M30x1.5
- Protection class IP67
- Multicolor: Green (COL 1) / Blue (COL 2)
- Male M12x1
- Operating voltage 12…30 VDC
General data
| EAN | 662488883904 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 112 g |
Technical Data
| Function | Spotlight |
| Light type | Green, Blue |
| Number of colors/segments | 2 |
| Dimmable | No |
| Cascadable | No |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC, Black |
| Window material | Polycarbonate, clear |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67/IP69 |
Mounting accessories
|
SMB30A
Mounting bracket, rectangular, stainless steel, for sensors with 30mm thread |
3032723 |
|
SMB30SC
Mounting bracket, PBT black, for sensors with 30 mm thread, rotatable |
3052521 |
Connectivity accessories
|
RKC4.4T-2/TEL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625013 |
|
WKC4.4T-2/TEL
Connection cable, M12 female connector, angled, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625025 |
