Product WLB32ZC570PBQMEF

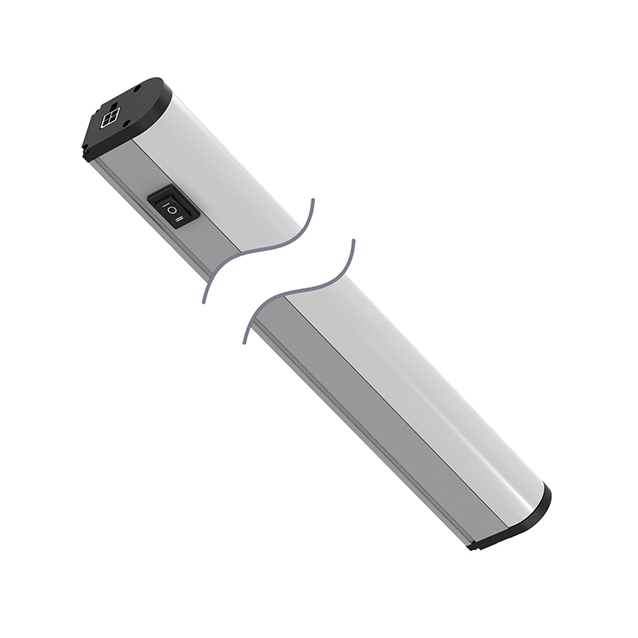

LED Linear Light
In the Metal Housing
Order number: 3089950Alternative order number : 89950
- Cascadable
- ON/OFF switch
- Operating voltage: 90…264 VAC
- Country-specific power cable for Germany, France, South Korea, Netherlands, Poland, Spain and Turkey included in delivery
- Color: White

General data
EAN | 662488899509 |
eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
Customs tariff number | 94054239900 |
Country of origin | MX |
Weight | 860 g |
Technical Data
Function | Linear light |
Light type | White |
Number of colors/segments | 1 |
Dimmable | Two-stage |
Cascadable | Yes |
Electrical connection | Connector |
Housing material | Metal, AL |
Window material | Polycarbonate, diffuse |
Ambient temperature | -25…+45 °C |
Protection class | IP50 |
Mounting accessories
![]() |

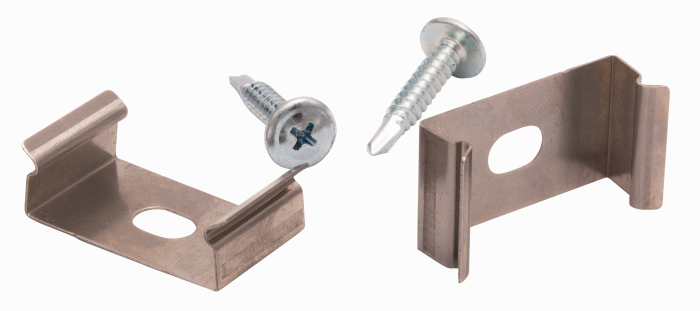

LMBWLB32
Snap bracket for WLB32 work light, included in the WLB92 scope of delivery |
3090623 |
![]() |

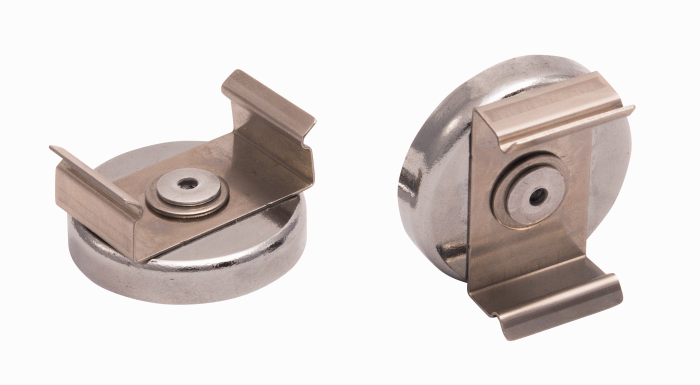

LMBWLB32MAG
Snap bracket for WLB32 work light, for mounting on metal surfaces |
3087851 |
Connectivity accessories
![]() |

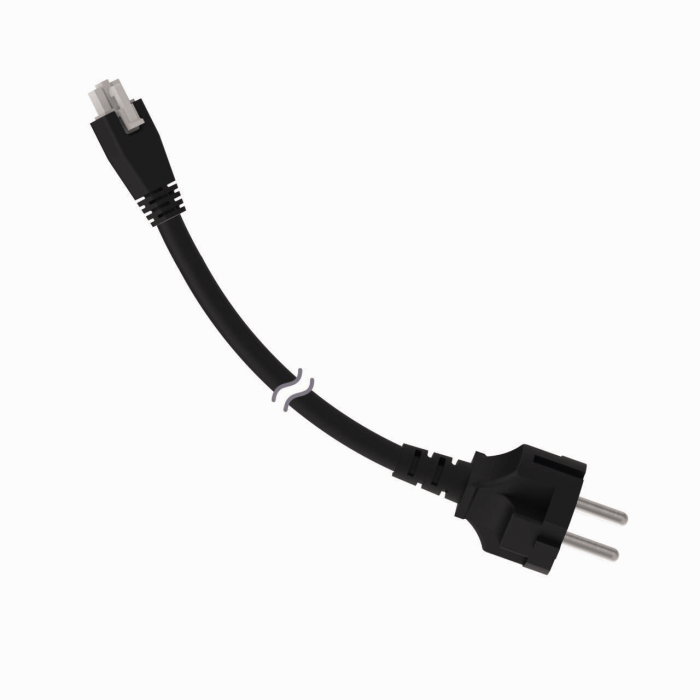

LQMAC-306EF
Connection cable, 3-pin, on CEE 7/7 connector (IEC E or F-type), for Germany, France, South Korea, Netherlands, Poland, Spain, Turkey |
3086709 |
![]() |

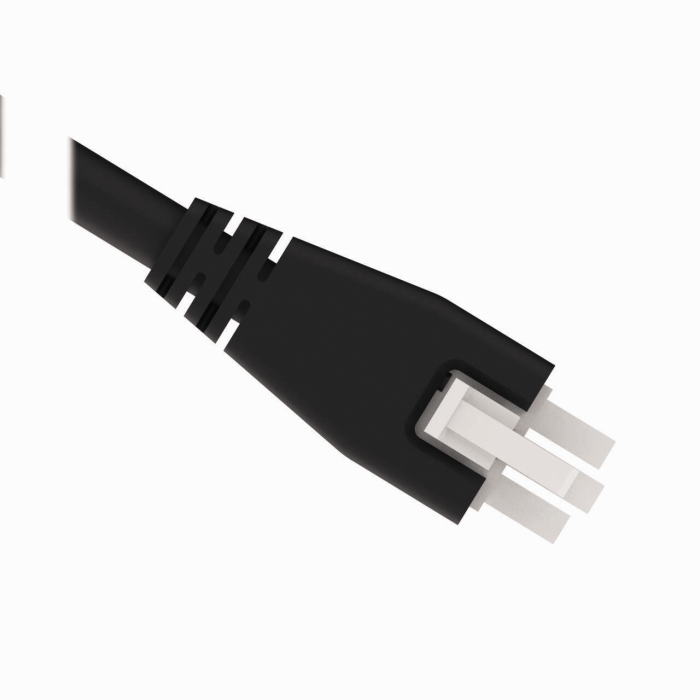

LQMAC-306
Connection cable, 3-wire, stranded wire |
3086779 |
