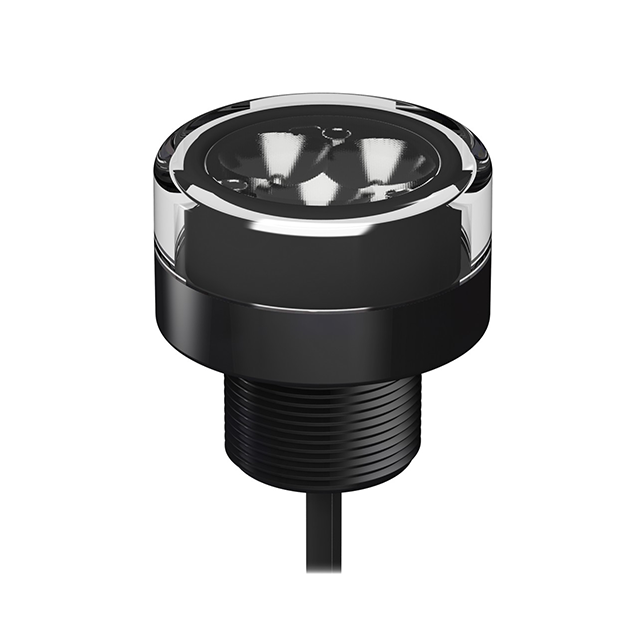

Product WL50SWSSL20PWMQ
LED Spotlight
Spotlight Dimmable with PWM
Order number: 3090460Alternative order number : 90460
- Operating voltage: 12…30 VDC
- Protection class: IP69K
- Stainless steel housing
- Color: White
- M12 x 1 connector
- Dimmable via PWM input
General data
| EAN | 662488904609 |
| eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
| Customs tariff number | 94054239900 |
| Country of origin | US |
| Weight | 514 g |
Technical Data
| Function | Spotlight |
| Light type | White |
| Number of colors/segments | 1 |
| Dimmable | PWM |
| Cascadable | No |
| Beam angle | 20° |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, Stainless steel |
| Window material | Polycarbonate, clear |
| Ambient temperature | -20…+50 °C |
| Protection class | IP67/IP69 |
Connectivity accessories
|
RKC4.4T-2/TEL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625013 |
|
WKC4.4T-2/TEL
Connection cable, M12 female connector, angled, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625025 |
