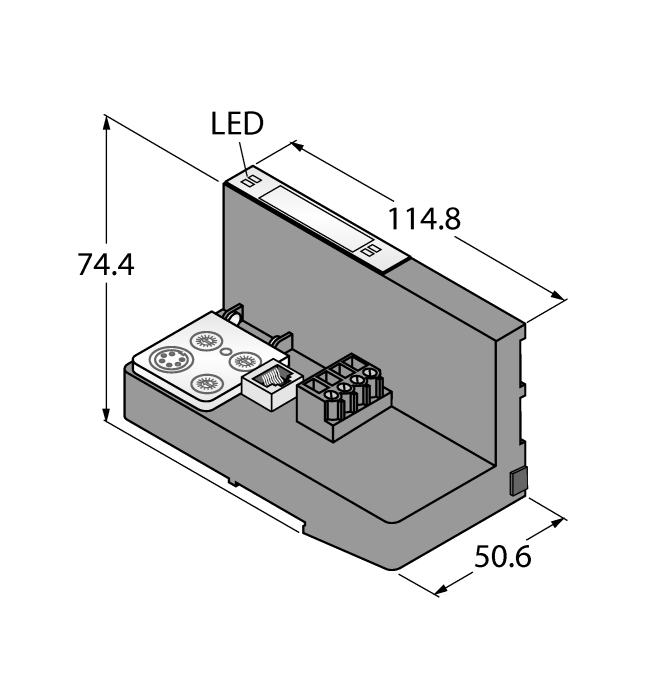

Product BL20-PG-EN-DN-JA
CODESYS 2 Programmable Gateway for the BL20 I/O System
Interface for Modbus TCP
Order number: 6827309- Rotary coding switch to adjust the node address
- Protection class IP20
- 2 x end brackets BL20-WEW35/2-SW
- 1 x end plate BL20-ABPL
- Integrated power supply
- LEDs for display of supply voltage, group and bus errors
General data
| EAN | 4047101203486 |
| eCl@ss-Code (V5.1.4): | 27250313 -/- Communication interface, passive |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 205 g |
Technical Data
| Network protocol | Modbus TCP |
| Device type | Programmable gateway |
| Fieldbus connection technology | RJ45 port |
| Ambient temperature | 0…+55 °C |
| Protection class | IP20 |
| Approvals | cULus |
Data Sheets
| German | 143 KB |
| English | 142 KB |
| French | 144 KB |
| Spanish | 144 KB |
| Czech | 143 KB |
| Dutch | 142 KB |
| Romanian | 144 KB |
| Russian | 165 KB |
| Polish | 143 KB |
| Turkish | 143 KB |
Approval
| FM07 ATEX 0040X | 739 KB |
| IECEx FME 07.0004X | 251 KB |
| FM Class 1 Div. 2 US | 178 KB |
| FM Class 1 Div. 2 Canada | 179 KB |
| EU Declaration of Conformity | 136 KB |
CAD File
Configuration Software
Manufacturer's Declaration
Connectivity accessories
|

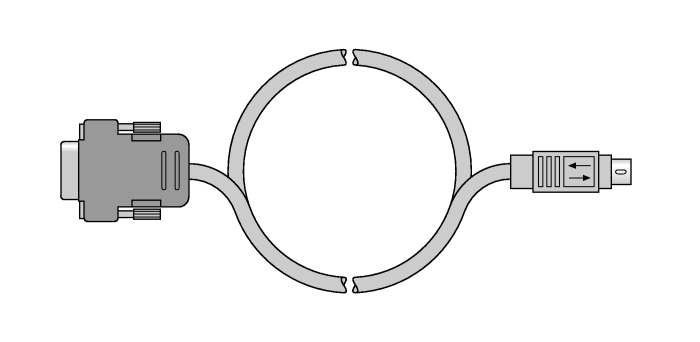

I/O-ASSISTANT-KABEL-BL20/BL67
RS232 service cable for Gateways with PS2 interface |
6827133 |
|
BS3511/KLBUE4-31.5
Shield terminal and strain relief for bus cable |
6827342 |
