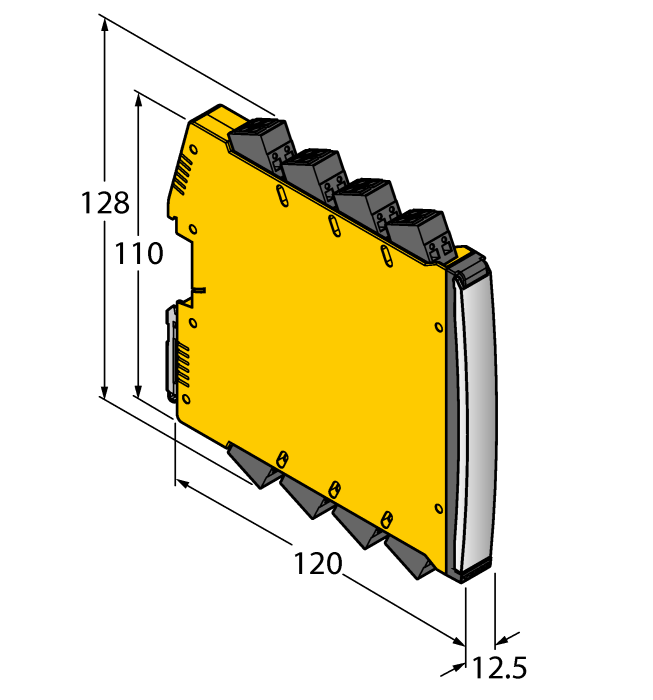

Product IM12-FI01-1SF-1R-0/24VDC/CC
Frequency Transducer/Pulse Counter
1-channel
Order number: 7580223- Input circuits monitored for wire break and short circuit
- Parameterized via DIP/rotary coding switch
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable spring type terminals
- Installation in Zone 2
- SIL 2
General data
| EAN | 4047101420432 |
| eCl@ss-Code (V5.1.4): | 27230220 -/- Rotation speed monitor |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 182 g |
Technical Data
| Signal type | Frequency input |
| Device type | Rotation speed monitor |
| Ex version | no |
| Approvals | cULus |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | 24 VDC |
| Number of channels | 1 |
| Digital output | Relay output |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
