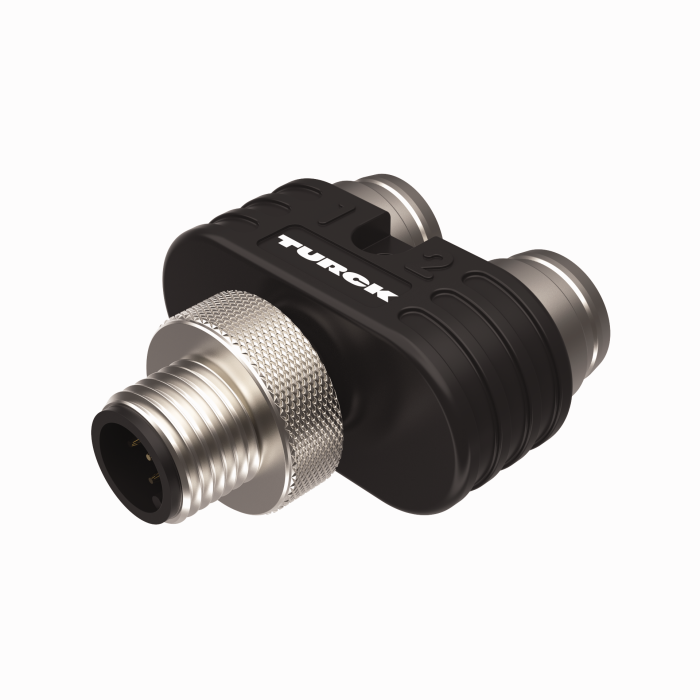

Product YBZ2-FSM 4.5/2FKM 4.5/S771
Verteiler
M12 Splitter
5-Wire
Order number: U0932-69- M12 Anschlusssteckverbinder
- M12 male connector, straight, 4-pin
- 2 × M12 female connector, straight, 4-pin
General data
| EAN | 4047101566802 |
| eCl@ss-Code (V5.1.4): | 27250313 -/- Communication interface, passive |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 40.823 g |
Technical Data
| Application | Signal |
| Design | Y-splitter |
| Connector A | Male, M12 × 1 |
| Number of pins | 4 |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Female, M12 × 1 |
| Number of Pins | 3 |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Protection class | IP68 |
| Approvals | UL Listed, CE, RoHS |
