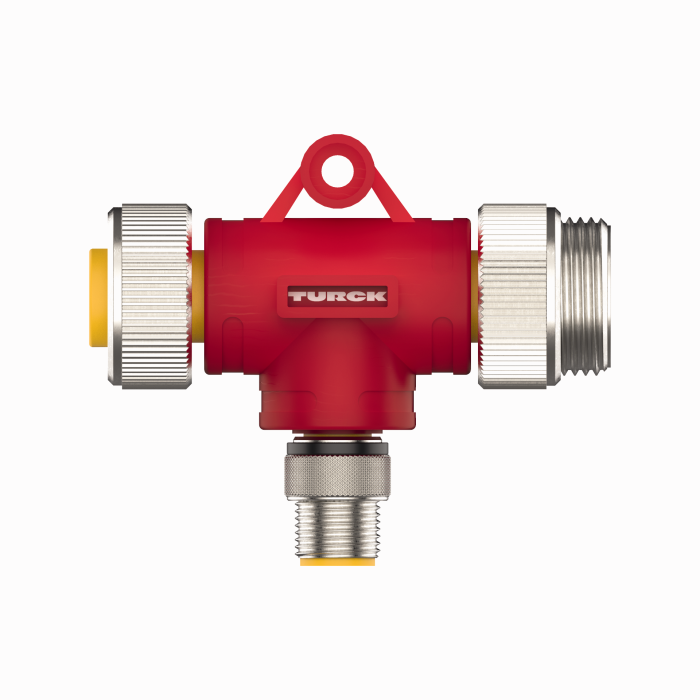

Product RKM 50-FSM 4-RSM 50/S1055/CS16562
2-Way Splitter
T-Splitter
Order number: U2-320097/8" female connector, 5-pin
M12 × 1 male connector, 4-pin
7/8" male connector, 5-pin
Ampacity: 4 A
Rated voltage: 40 V
Protection class NEMA 1, 3, 4, 6, 6P and IEC IP67
Temperature range: -40 °C…+75 °C
General data
| EAN | 4047101467741 |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 95 g |
Technical Data
| Connector A | Female, 7/8″-16 UN |
| Number of pins | 5 |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Male, M12 × 1 |
| Number of Pins | 4 |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Voltage | 40 V |
| Protection class | IP67 |
