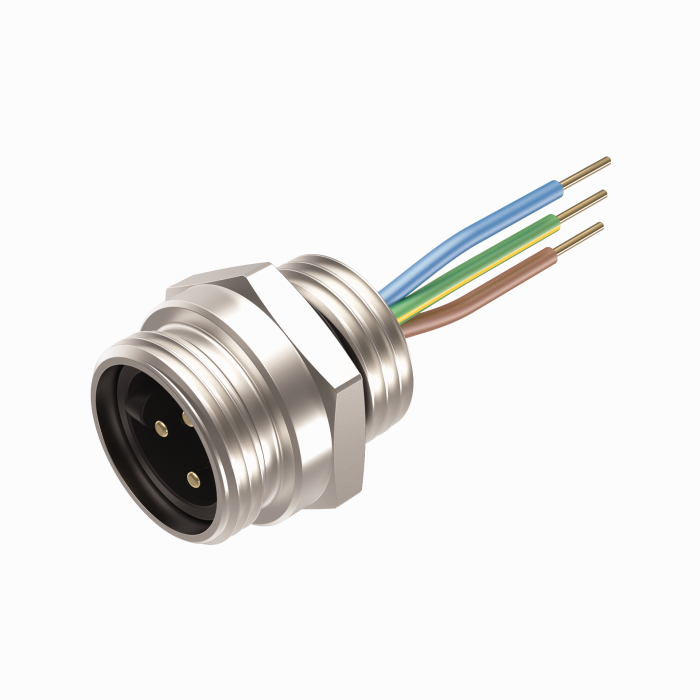

Product RSF 30-0.2M
Actuator and Sensor Receptacles
Front-Mounted

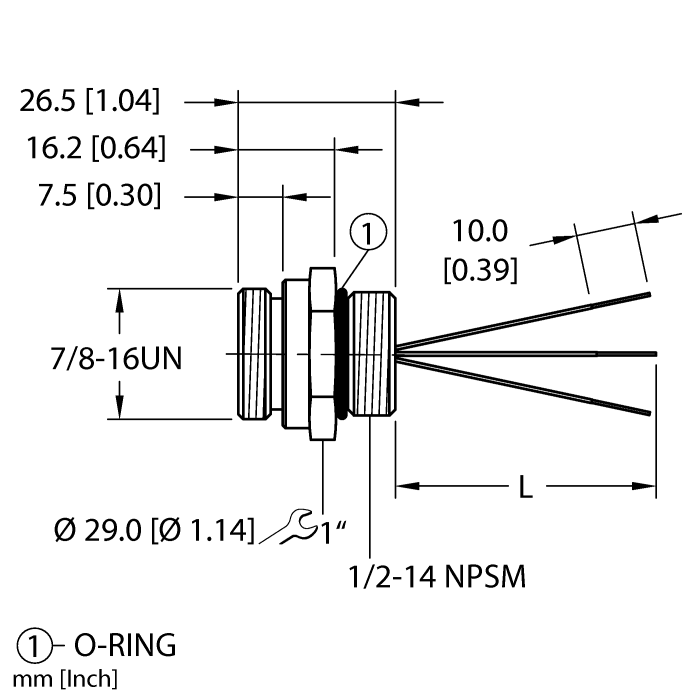

Order number: U2306- 7/8″, male receptacle, 3-pin
- Screw-in thread: 1/2″-14 NPSM
General data
| EAN | 4047101051254 |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 52.163 g |
Technical Data
| Application | Signal |
| Connector A | Male, 7/8″-16 UN |
| Number of pins | 3 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Mounting type | front panel mounting |
| Screw-in thread | 1/2″-14 NPSM |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 9 A |
| Cable length | 0.20, 0.2 m |
| Protection class | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
