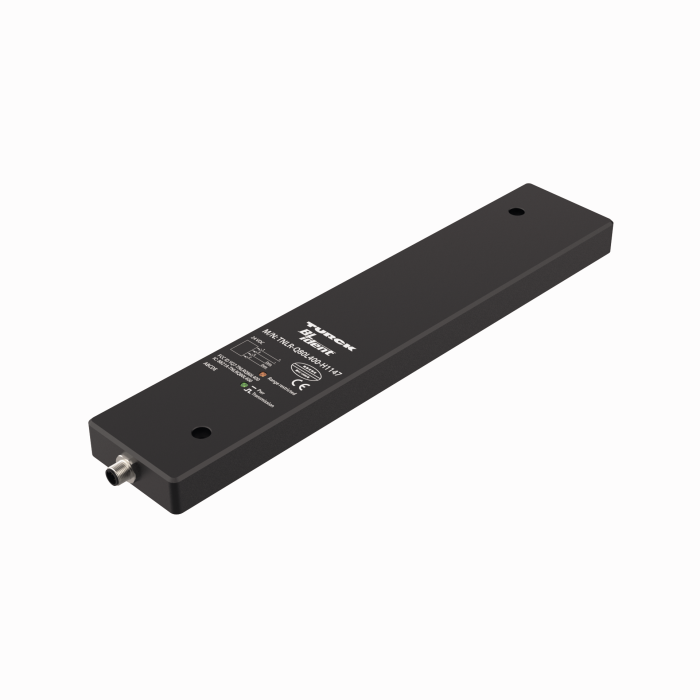

Product  TNLR-Q80L400-H1147

HF Read/Write Head

Order number: 7030204
    • For roller conveyors

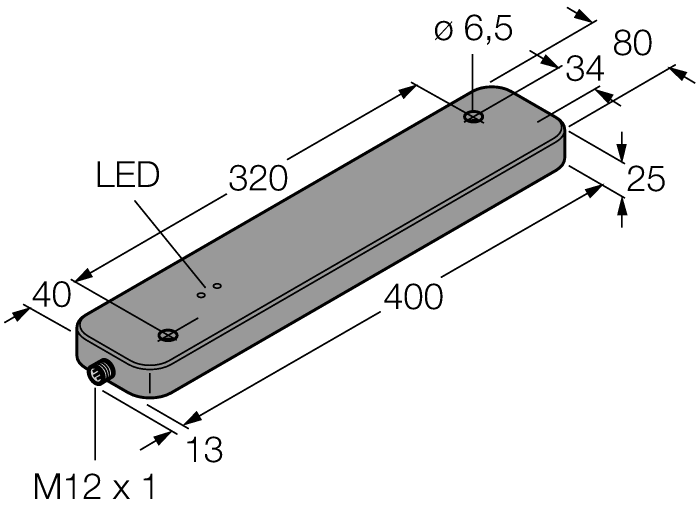

    • Rectangular, 80 x 400 mm, height 25 mm
    • Active face on top
    • Plastic, PBT‐GF30‐V0
    • Powered and operated only via connection to BL ident interface module
    • M12 × 1 connector, connection only via BL ident extension cable
#

General data

EAN 4047101206869
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 1218 g

Technical Data

Technology HF RFID
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular
Construction size 400 x 80 x 25 mm, Q80L400
Read/Write distance max. 345 mm
Mounting conditions Non-flush
Network protocol Connection to RFID interface
Housing material Plastic, PBT-GF30-V0, Black
Ambient temperature -25…+70 °C
Protection class IP67
