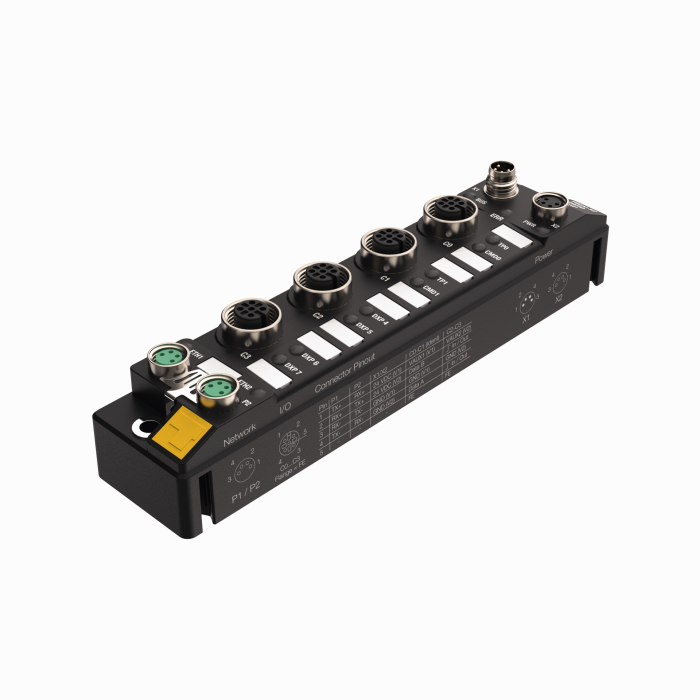

Product  TBEN-S2-2RFID-4DXP

Compact Multiprotocol RFID Module for Ethernet

2 RFID Channels (HF/UHF) and 4 Universal Digital Channels, Configurable as PNP Inputs or 0.5-A Outputs

Order number: 6814029
    • PROFINET device, EtherNet/IP device or Modbus TCP slave
    • PROFINET S2 system redundancy
    • 2 channels with M12 connection for RFID
    • Mixed operation of HF and UHF read/write heads
    • 4 universal digital channels, configurable as PNP inputs or 0.5-A outputs
    • Integrated Ethernet switch
    • Supports 10 Mbps/100 Mbps
#

General data

EAN 4047101310252
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85369095000
Country of origin DE
Weight 219 g

Technical Data

Network protocol Modbus TCP, EtherNet/IP, PROFINET
Signal type RFID, Digital input, Digital input/output, Digital output
Connection technology signal M12
Product series TBEN-S
Device type I/O Module, Compact station, Field Logic Controller (ARGEE)
Protection class IP65/IP67/IP69K
Approvals cULus
Ambient temperature -40…+70 °C

Connectivity accessories — Power supply

PKG4M-2-PSG4M/TXL Connection cable, M8 female, straight, 4-pin to M8 male, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — I/O

RKC4.4T-2-RSC4.4T/TXL Extension cable, M12 female, straight, 4-pin to M12 male, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and qualities available, see www.turck.com
VBRS4.4-2RKC4T-1/1/TXL 2-port junction systems — Y-splitter with cable, M12 male connector, straight, 4-pin — 2 × M12 female connector, straight, 3-pin, cable length: 1 m, jacket material: PUR, black; other cable lengths and qualities available, see www.turck.com
WKC4.4T-2-RSC4.4T/TXL Extension cable, M12 female, angled, 4-pin to M12 male, straight, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — Network

PSGS4M-RJ45S-4416-2M Cable for Industrial Ethernet, M8 male, straight to RJ45 male, straight, cable length: 2 m, jacket material: PUR, green; other cable lengths and qualities available, see www.turck.com
PSGS4M-PSGS4M-4416-2M Cable for Industrial Ethernet, M8 male, straight to M8 male, straight, cable length: 2 m, jacket material: PUR, green; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — Technology

RK4.5T-2-RS4.5T/S2500 BL ident cable, M12 female connector, straight to M12 male connector, straight, cable length: 2 m, jacket material: PUR, yellow; other cable lengths and qualities available, see www.turck.com
RK4.5T-2-RS4.5T/S2503 BL ident cable, M12 female connector, straight to M12 male connector, straight, cable length: 2 m, jacket material: PUR, black; other cable lengths and qualities available, see www.turck.com
RSCV-RKCV5500-2M/S2500 Cable for RFID applications in the food industry, M12 connector, straight to M12 female connector, straight, cable length: 2 m, jacket material: PPEDEM, white; other cable lengths and qualities available, see www.turck.com
