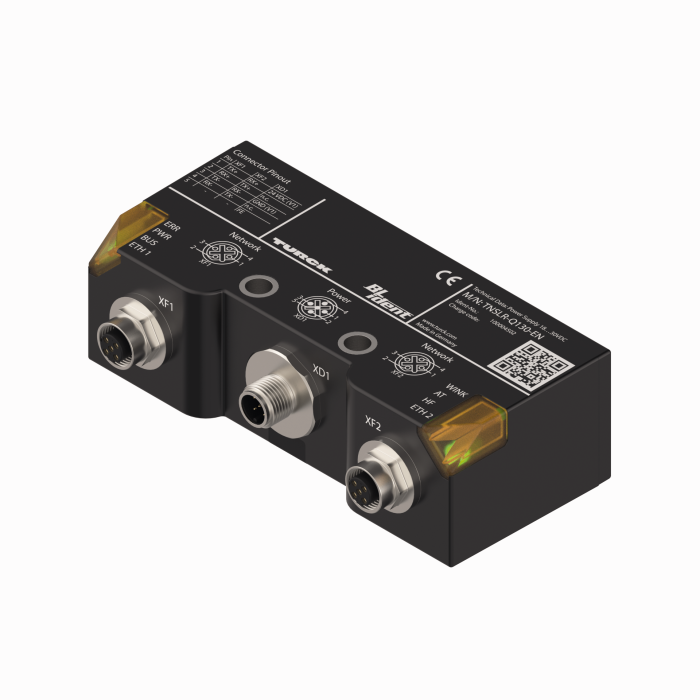

Product TNSLR-Q130-EN
HF Read/Write Head
Integrated-Interface Multiprotocol Ethernet
Order number: 100004502- Commissioning support through graphical display of the RSSI value and the detuning caused by metal in TAS (Turck Automation Suite, available free of charge at www.turck.com)
- PROFINET device, EtherNet/IP device or Modbus TCP slave
- PROFINET S2 system redundancy
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- Glass-fiber-reinforced housing
- Shock and vibration tested
- Fully encapsulated module electronics
- Protection class IP69K front, IP67 rear
- Integration in PLC systems without the use of a special function module
- Up to 128 bytes of user data per read/write cycle and use of fragments with 16 kilobytes of FIFO memory each
- Data interface for convenient use of the RFID functions
- Integrated web server with reader parameterization
- LEDs and diagnostics
General data
| EAN | 4047101500318 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 350 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Rectangular |

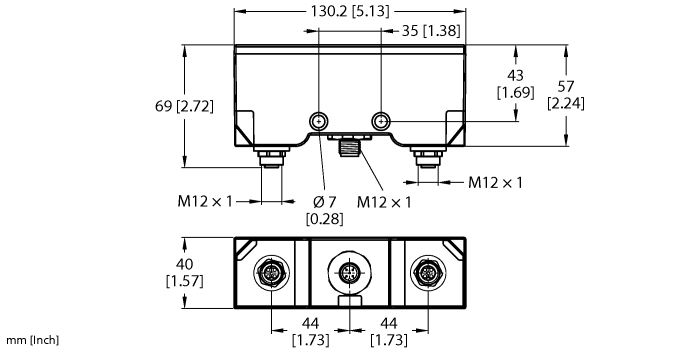

| Construction size | 130 x 69 x 40 mm, Q130 |
| Mounting conditions | Non-flush |
| Network protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Housing material | Plastic, Black |
| Ambient temperature | -40…+70 °C |
| Protection class | IP69K front, IP67 rear |
Data Sheets
Configuration File
Configuration Manual
Configuration Software
Firmware
Manual
Product Flyer
Quick Start Guide
Mounting accessories
|

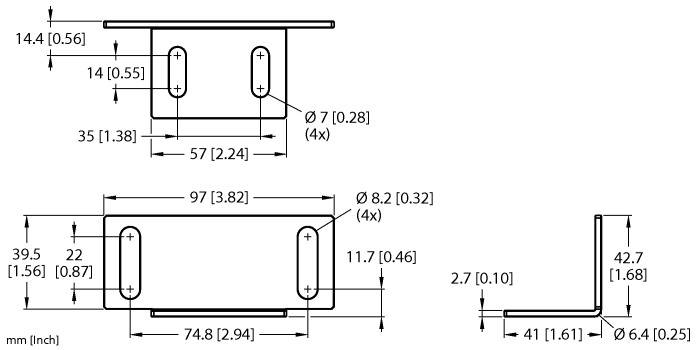

MB-Q130WD
Mounting clip for Q130WD sensors; material: stainless steel, 1.4401 (AISI 316) |
A900166 |
Connectivity accessories
|

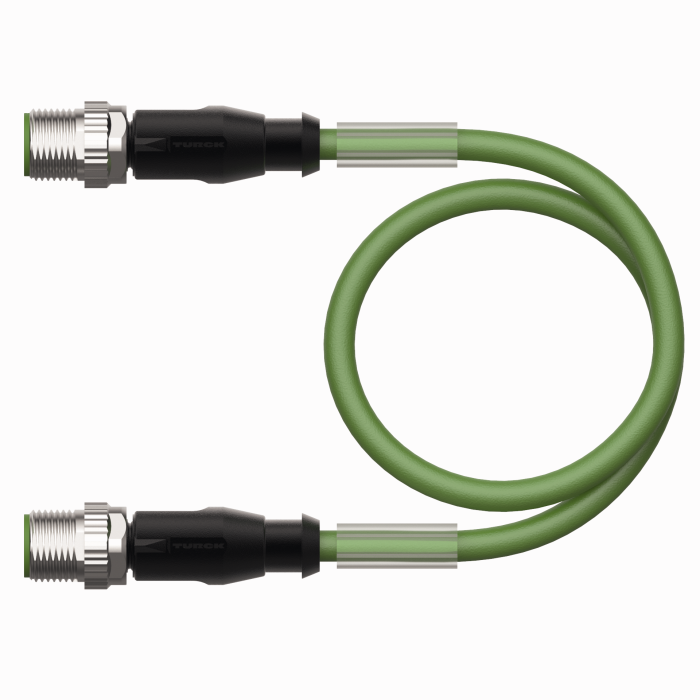

RSSD-RSSD-4414-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to M12 male connector, straight, cable length: 2 m, jacket material: PUR, green |
6441405 |
|
RSSD-RJ45S-4422-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to RJ45 male connector, straight, cable length: 2 m, jacket material: PUR, green |
6635170 |
|
RKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval |
6625608 |
|
RKC4.4T-2/TXL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval |
6625503 |
