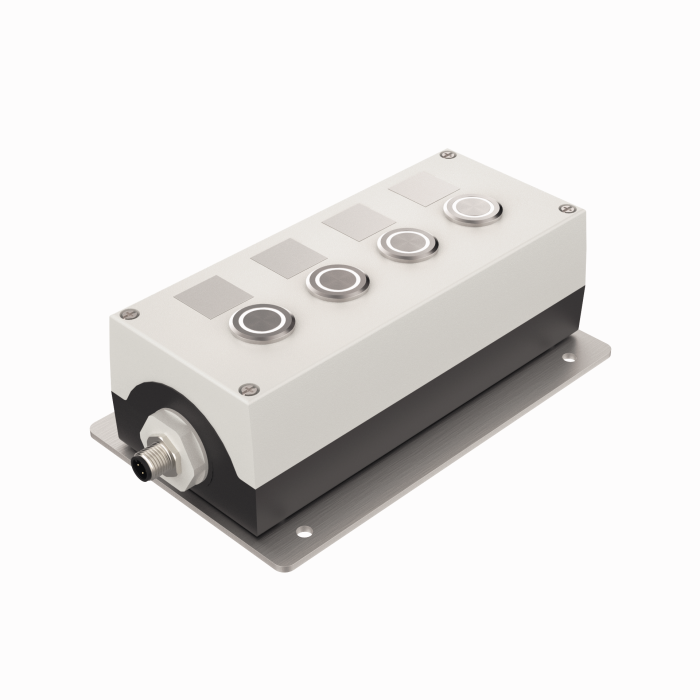

Product OPIL-E4-IO6
Operator Panel for Connecting to IO-Link Master
4 Buttons with Lamp
Order number: 100046892- Robust housing
- 1 × illuminated push button, white light-up ring
- 1 × illuminated push button, blue light-up ring
- 1 × illuminated push button, yellow light-up ring
- 1 × illuminated push button, red light-up ring
General data
| EAN | 4047101631197 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85371098990 |
| Country of origin | DE |
| Weight | 900 g |
Technical Data
| Network protocol | IO-Link |
| Signal type | Digital output, Digital input, Digital input/output |
| Ambient temperature | -40…+70 °C |
| Protection class | IP54 |
