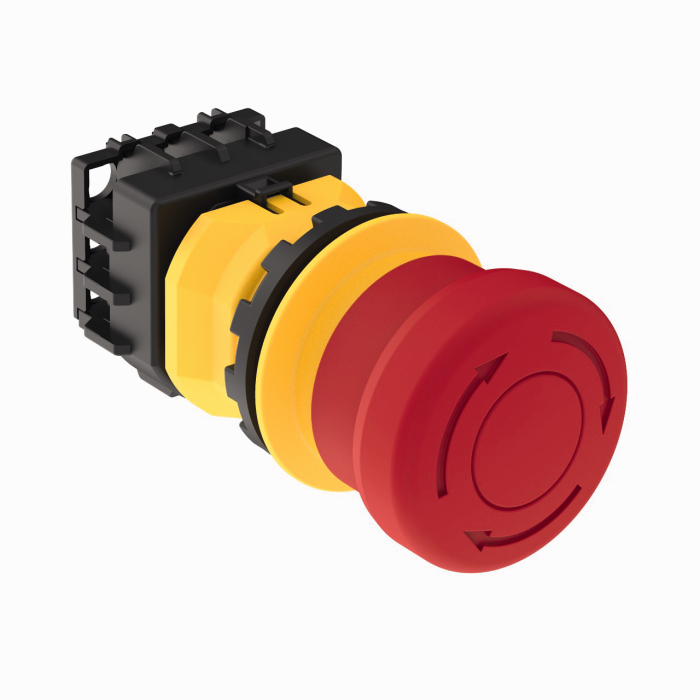

Product SSA-EB1P-02
Emergency Shutdown
E-stop Button
Order number: 3042201Alternative order number : 42201
- Emergency stop button
- Mounting the console for 30-mm mounting hole
- 2 NC contacts
- 40-mm actuator
- Push and turn operation for emergency stop/release
General data
| EAN | 662488422011 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365080000 |
| Country of origin | JP |
| Weight | 79.83 g |
Technical Data
| Function | E-stop button, unlit |
| Design | Rectangular |
| Light type | Red |
| Electrical connection | Screw terminal connection, Removable screw terminals |
| Housing material | Plastic, PC |
| Ambient temperature | -25…+55 °C |
| Protection class | IP65 |
