Product PVA300N6
Pick-to-Light
Placement Sensor
Light Grid Kit
Order number: 3052910Alternative order number : 52910

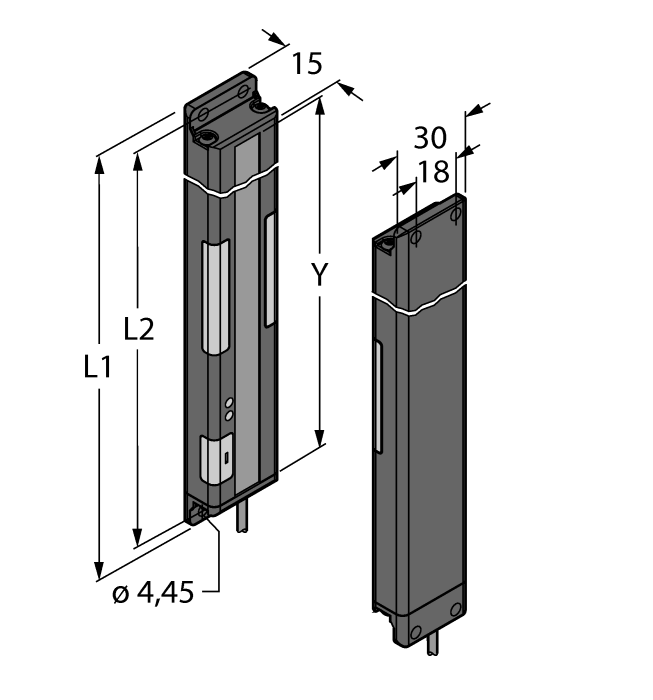

- Scan field L2: 300 mm
- 13-beam system, beam spacing 25 mm
- Emitter / Receiver
- Range max. 2 m
- Light / Dark operation
- Selectable frequency as protection against crosstalk
- Operating voltage 12…30 VDC
- NPN switching output of the receiver
- Input of operation request light 0 VDC
- Protection class IP62
General data
| EAN | 662488529109 |
| eCl@ss-Code (V5.1.4): | 27270910 -/- Light grid |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 798 g |
Technical Data
| Function | Opposed mode sensor |
| Light type | IR |
| Number of colors/segments | 1 |
| Scan field | 300 mm |
| Output function | NO/NC, NPN |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal, AL, Black |
| Window material | Acrylic, clear |
| Ambient temperature | 0…+50 °C |
| Protection class | IP62 |
