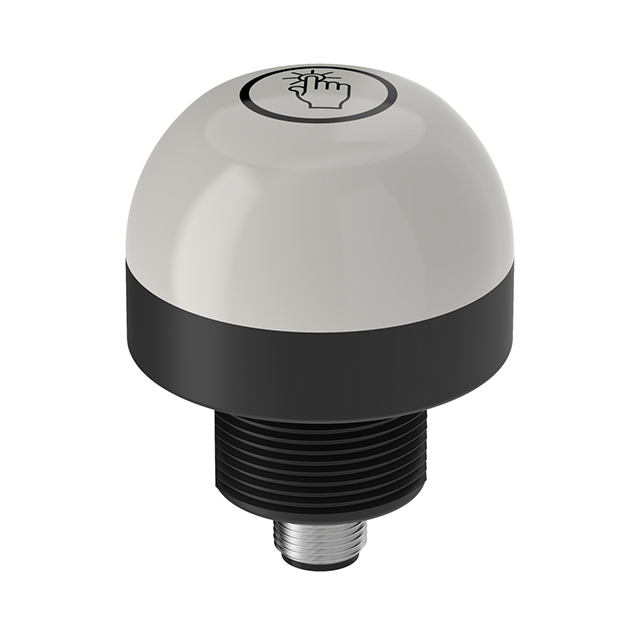

Product K50APT2GRCQ
Pick-to-Light
Placement Sensor
Capacitive Sensor
Order number: 3096694Alternative order number : 96694
- Protection class IP67/IP69K
- M12 × 1 connector
- Job light: green
- Mispick: -
- Actuation: red
- Operating voltage 12…30 VDC
- PNP switching
- NO contact
- Capacitive sensor of the second generation
- High immunity to false actuation by splashing, detergents, oils and other contaminants
General data
| EAN | 662488966942 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 136.08 g |
Technical Data
| Function | Touch Button |
| Light type | Green, Red |
| Number of colors/segments | 2 |
| Output function | NO contact, PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC, Black |
| Window material | Polycarbonate, diffuse |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67/IP69 |
Data Sheets
| German | 330 KB |
| English | 329 KB |
| French | 331 KB |
| Spanish | 329 KB |
| Czech | 329 KB |
| Dutch | 329 KB |
| Romanian | 329 KB |
| Russian | 464 KB |
| Polish | 332 KB |
| Chinese | 421 KB |
| Turkish | 255 KB |
General Catalog
Product Flyer
Product Overview
| Pick-to-Light: Complete solutions from a single source | 970 KB |
| Lighting and Indication Selection Guide | 4409 KB |
Quick Start Guide
Mounting accessories
|
SMB30A
Mounting bracket, rectangular, stainless steel, for sensors with 30mm thread |
3032723 |
|
SMB30SC
Mounting bracket, PBT black, for sensors with 30 mm thread, rotatable |
3052521 |
Connectivity accessories
|
RKC4.4T-2/TEL
Connection cable, M12 female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625013 |
|
WKC4.4T-2/TEL
Connection cable, M12 female connector, angled, 4-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625025 |
