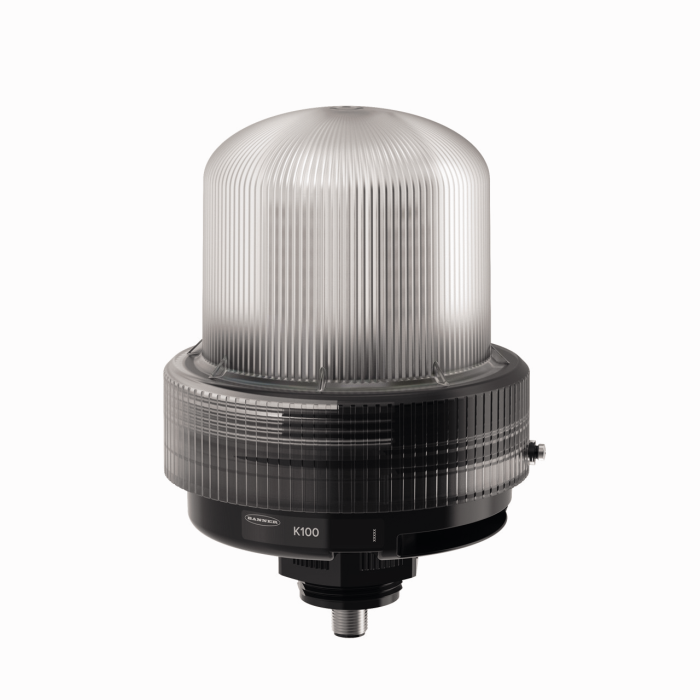

Product K100PBLYAQ
LED Signal Light
Order number: 3814000- All-round LED display
- Mechanical screw-in thread M36 × 2.0
- Protection class IP66
- Up to three light colors and predefined lighting animations can be displayed (COL 1, COL 2, COL 3)
- Can be configured using Pro Editor, various lighting animations, configurable I/O-block compatibility
- M12 × 1 male connector, 5-pin
- Continuous beep: 101 dB, configurable with Pro Editor
General data
| EAN | 662488230647 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 671.32 g |
Technical Data
| Light type | Yellow |
| Acoustic signal | programmable |
| Volume | 101 dB |
| Dimmable | Programmable |
| Cascadable | No |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC |
| Ambient temperature | -40…+60 °C |
| Protection class | IP66 |
Connectivity accessories
|
WKC4.5T-2/TEL
Connection cable, M12 female connector, angled, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625028 |
|
RKC4.5T-2/TEL
Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625016 |
