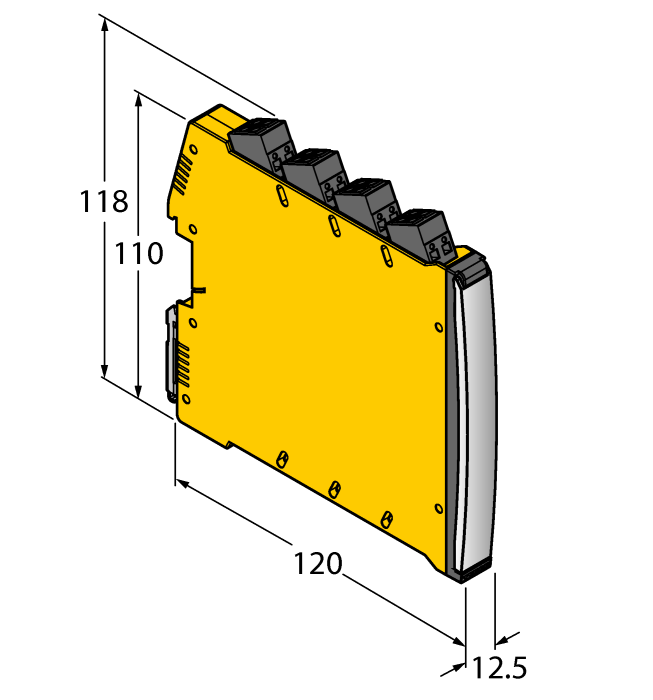

Product IM12-AO01-2I-2I-HPR/24VDC/CC
Analog Signal Isolator
2-channel
Order number: 7580426- Output circuits monitored for wire break and short circuit
- Complete galvanic isolation
- HART transparent
- Removable spring type terminals
- Power bridge (connector incl. in delivery)
- ATEX use in Zone 2, cUL
- SIL 2
General data
| EAN | 4047101421460 |
| eCl@ss-Code (V5.1.4): | 27210107 -/- Transducer (universal) |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 1 g |
Technical Data
| Signal type | Analog output (HART transparent) |
| Device type | Analog signal isolator - Output field side |
| Ex version | no |
| Approvals | cULus |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | Power bridge 24 VDC |
| Number of channels | 2 |
| Connection variant | Power bridge with collective fault signal |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
Mounting accessories
|

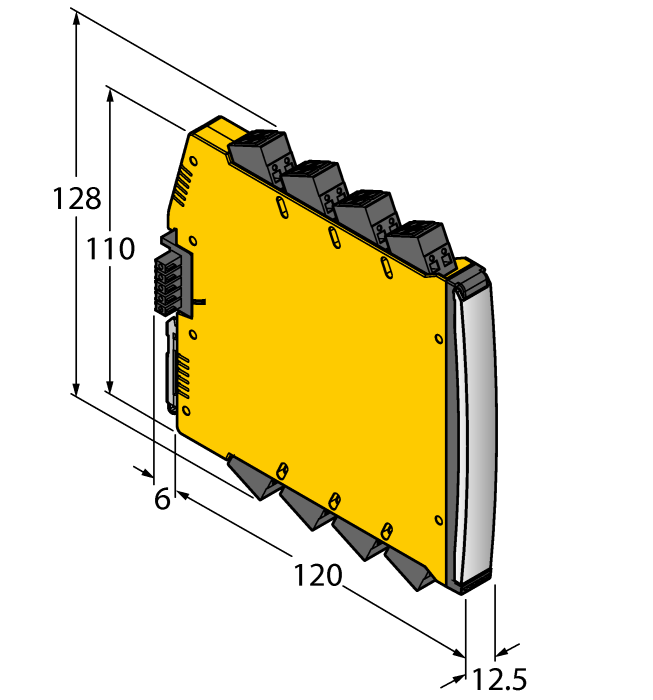

IMX12-PS02-UI-UIR-PR/24VDC/CC
Power supply module power bridge; Collective fault signal via relay; Single and redundant power supply via terminals; Removable screw terminals |
7580611 |
|

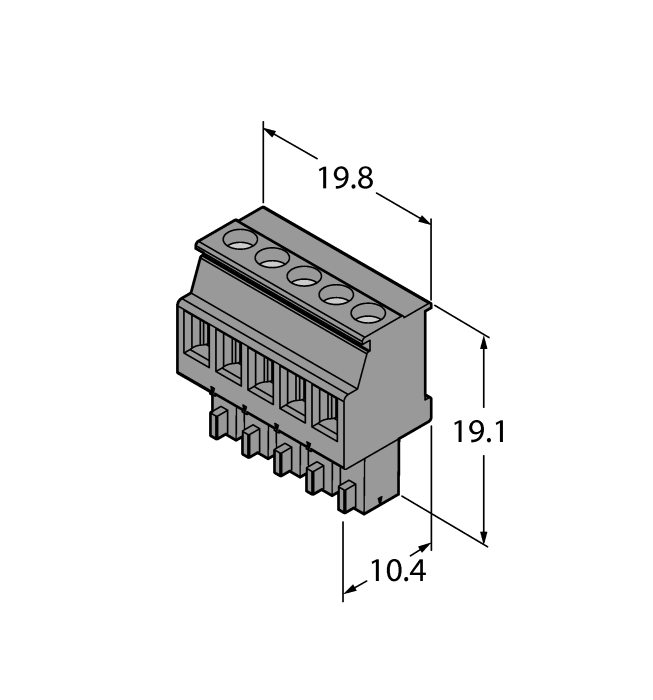

IMC 1.5/ 5-ST-3.81 BK
Power Bridge Connection Terminal |
7580954 |
|

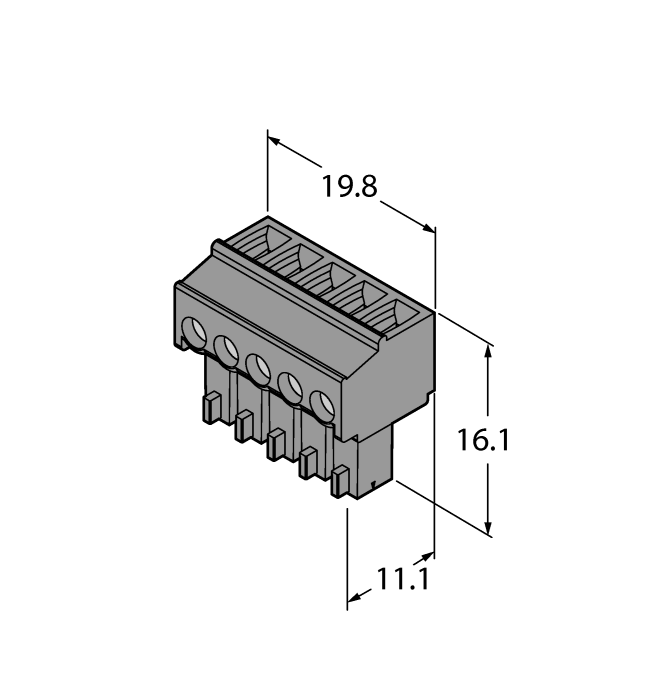

MCVR 1.5/ 5-ST-3.81 BK
Power Bridge Connection Terminal |
7580955 |
|

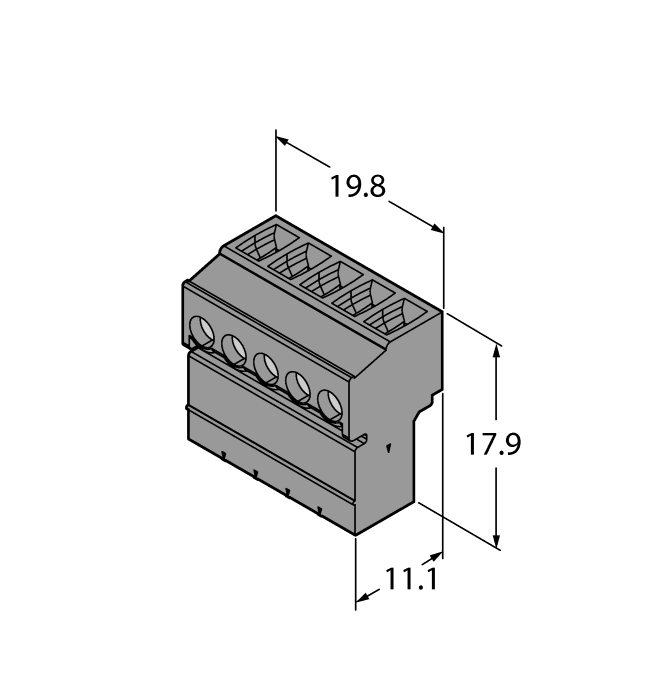

MC 1.5/ 5-ST-3.81 BK
Power Bridge Connection Terminal |
7580956 |
|

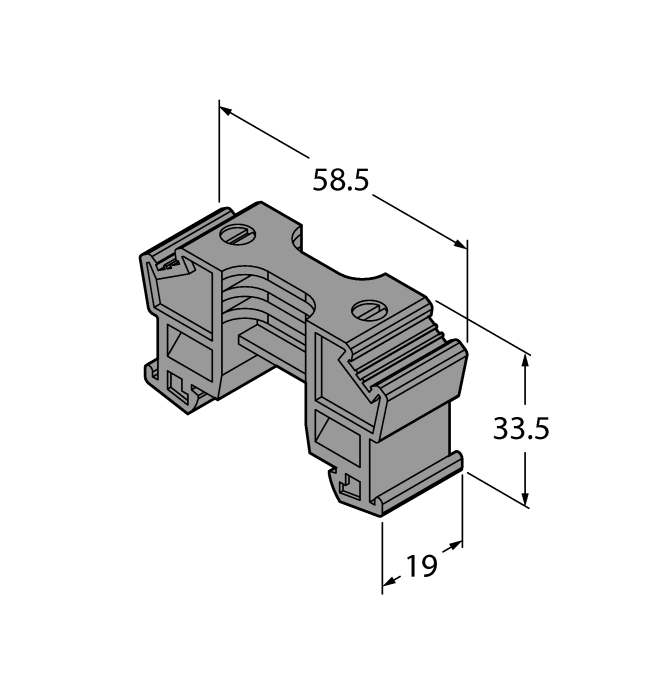

E/ME TBUS NS35 BK
Power Bridge Connection Terminal |
7580957 |
