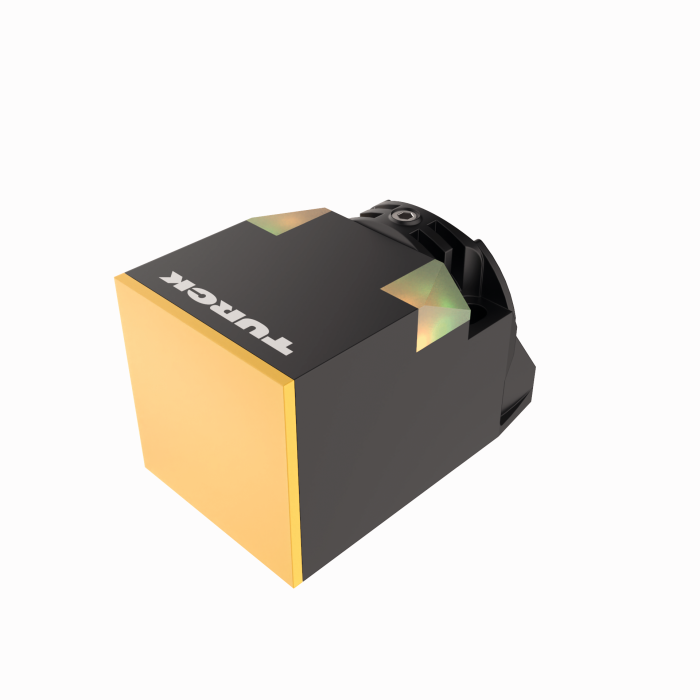

Product  TN-CK40-H1147

Read/write Head

Order number: 7030006
    • Rectangular, height 40 mm
    • Read/write head (5 positions)
    • Plastic, PBT-GF30-VO
#

General data

Preferred type 5
EAN 4047101115000
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 116 g

Technical Data

Technology HF (13.56 MHz)
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular

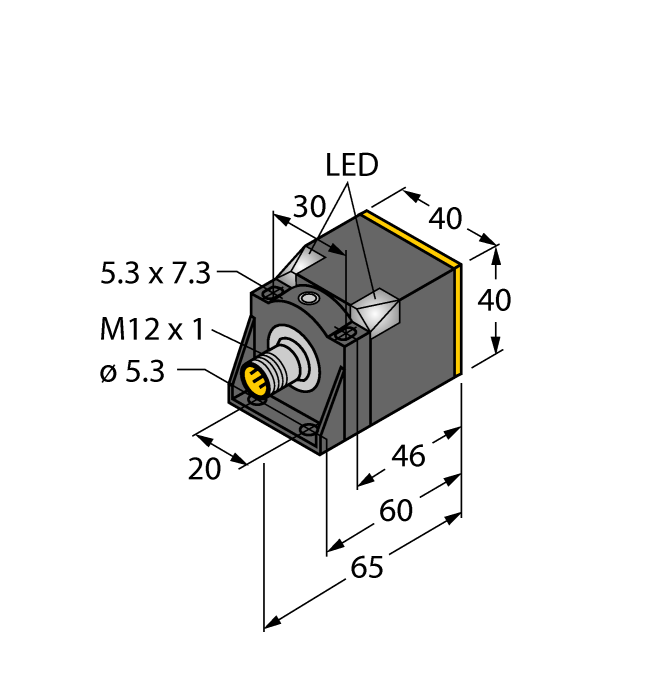

Construction size 65 x 40 x 40 mm, CK40
Read/Write distance max. 115 mm
Mounting conditions Non-flush
Network protocol Connection to RFID interface
Ambient temperature -25…+70 °C
Protection class IP67
