Product LI500P0-Q25LM0-LIU5X3-H1151

Zoom
Zoom

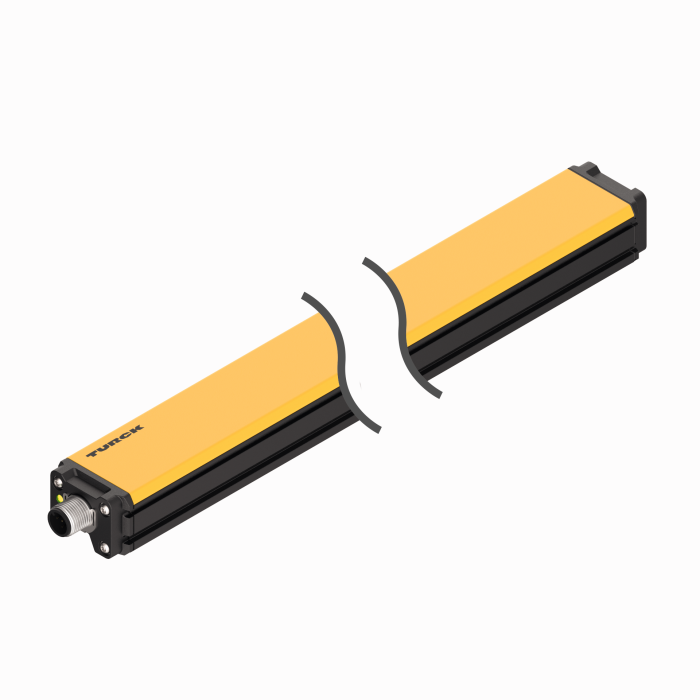

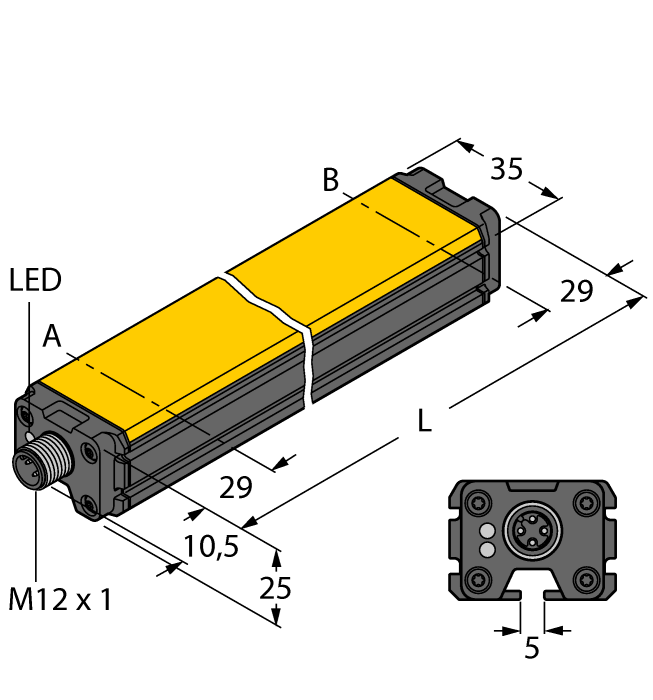

Inductive Linear Position Sensor

Order number: 1590005

Rectangular, aluminium / plastic
Versatile mounting possibilities

LED indicates measuring range
Immune to electromagnetic interference
Extremely short blind zones
Resolution, 12-bit

4‐wire, 15…30 VDC
Analog output
Programmable measuring range
0…10 V and 4…20 mA
M12 × 1 male, 5-pin

Hide All Open All

Specifications
Download
Accessories
CAD

General data

EAN	4047101227260
eCl@ss-Code (V5.1.4):	27270702 -/- Inductive linear position sensor
Customs tariff number	90318020000
Country of origin	DE
Weight	746 g

Technical Data

Design	Profile
Measuring principle	Inductive
Measuring range	500 mm [19.69 in]
Operating voltage	15…30 VDC
Output function	Analog output
Voltage output	0…10 V
Current output	4…20 mA
Electrical connection	Connector, M12 × 1
Housing material	Aluminum/plastic, PA6-GF30, Anodized
Ambient temperature	-25…+70 °C
Protection class	IP67

Data Sheets

German	1357 KB
English	1357 KB
French	1357 KB
Spanish	2041 KB
Czech	1358 KB
Dutch	1357 KB
Romanian	1357 KB
Russian	1363 KB
Polish	1358 KB
Turkish	1358 KB

Approval/Declaration

CE	86 KB

CAD File

2D (DWG)	61 KB
3D-1 (STP)	105 KB

Mounting accessories

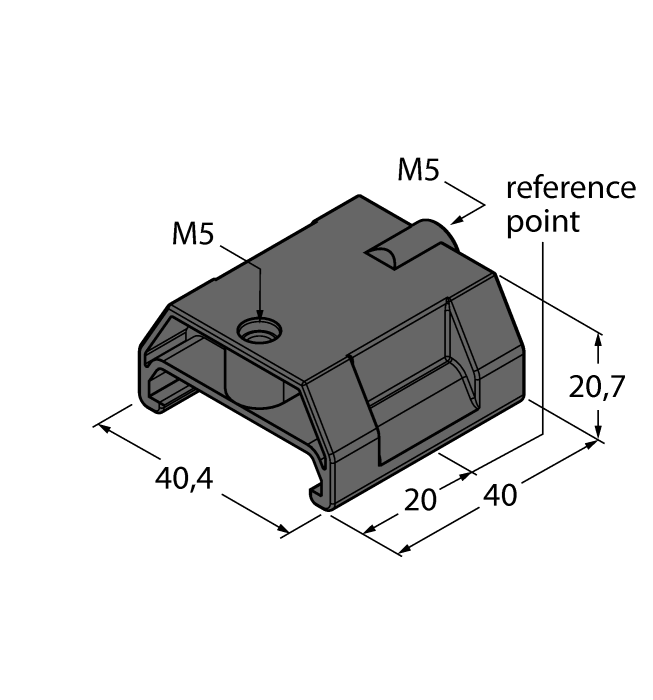

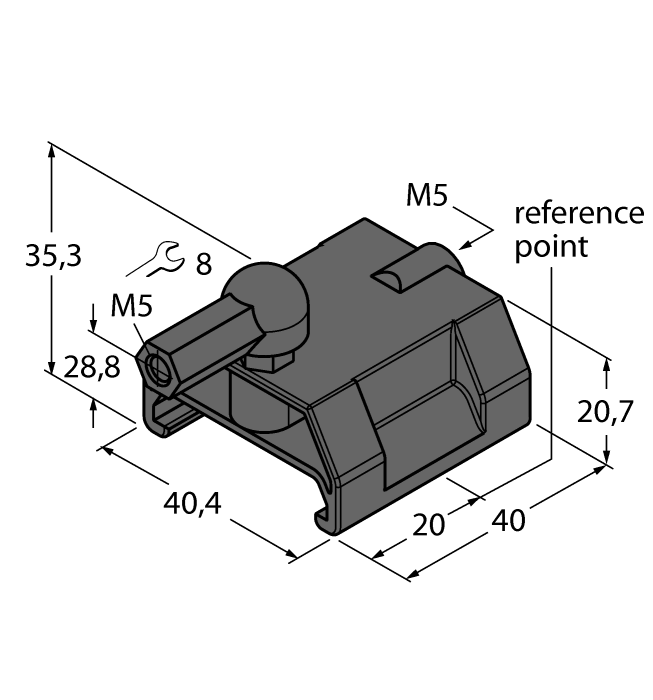

6901041	P1-LI-Q25L	Guided positioning element for linear position sensors LI-Q25L, inserted in the groove of the sensor

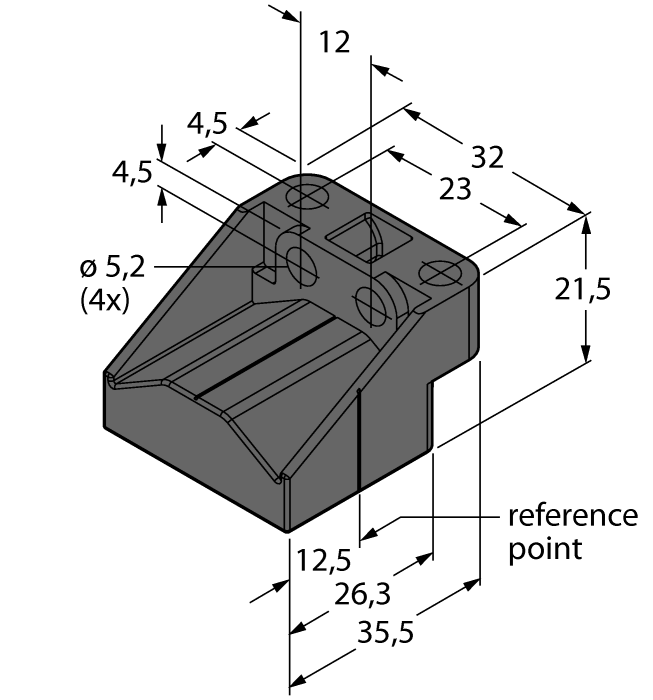

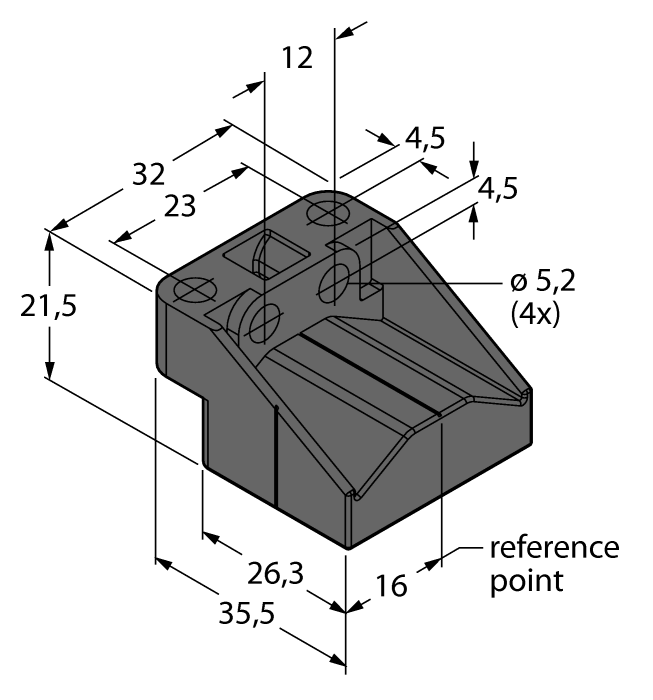

6901042	P2-LI-Q25L	Floating positioning element for linear position sensors LI-Q25L; the nominal distance to the sensor is 1.5 mm; pairing with the linear position sensor at a distance of up to 5 mm or misalignment tolerance of up to 4 mm.
6901044	P3-LI-Q25L	Floating positioning element for Li-Q25L linear position sensors; operational at an offset of 90 ; nominal distance to sensor 1.5 mm; pairing with linear position sensor at a distance of up to 5 mm; misalignment tolerance of up to 4 mm
6901087	P7-LI-Q25L	Guided positioning element for linear position sensors LI-Q25L, without ball joint

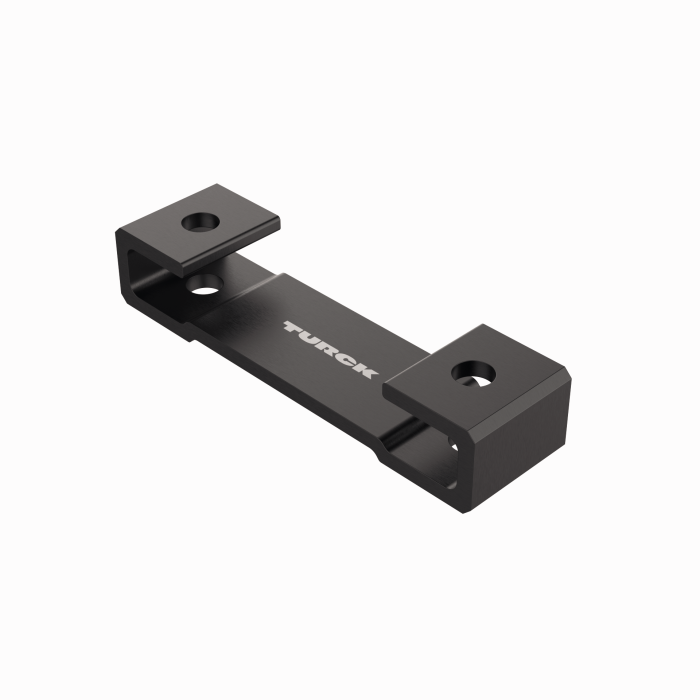

6901045	M1-Q25L	Mounting foot for linear position sensors LI-Q25L; material: aluminum; 2 pcs. per bag
6901046	M2-Q25L	Mounting foot for linear position sensors LI-Q25L; material: aluminum; 2 pcs. per bag

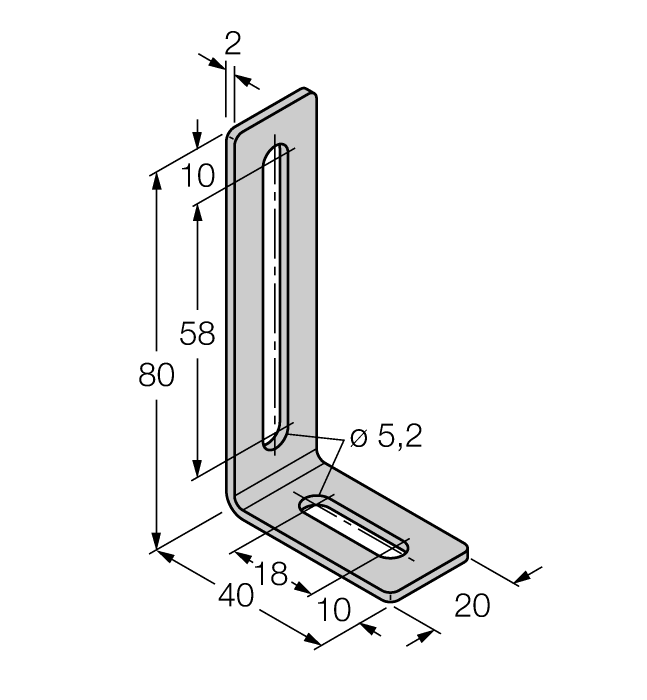

6901048	M4-Q25L	Mounting bracket and sliding block for linear position sensors LI-Q25L; material: Stainless steel; 2 pcs. per bag

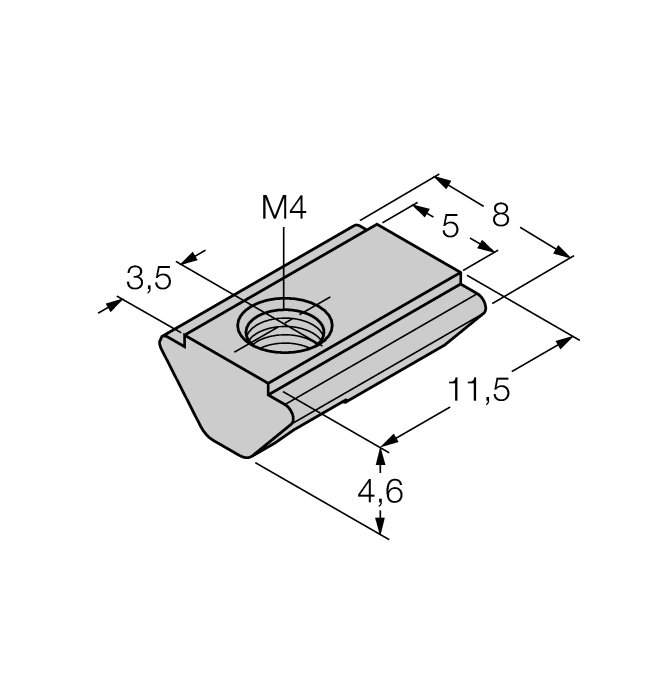

6901025	MN-M4-Q25	Sliding block with M4 thread for the backside profile of the LI-Q25L; material: galvanized steel; 10 pcs. per bag

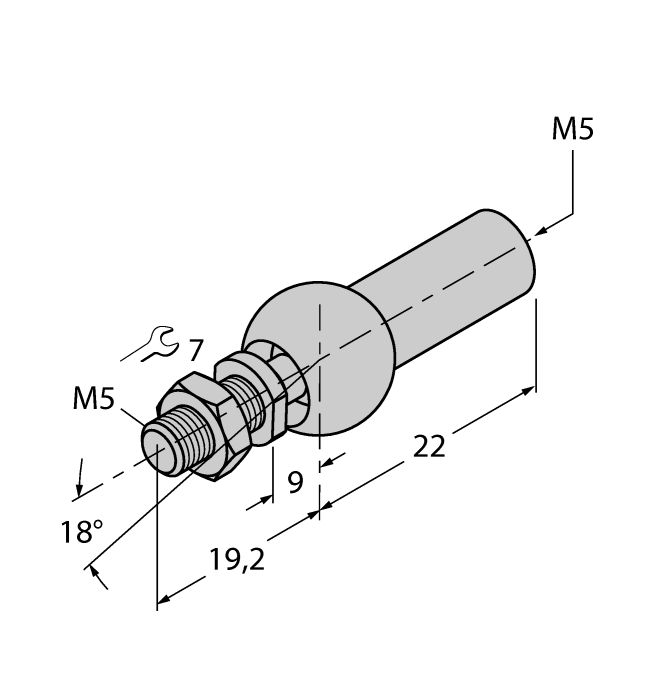

6901057	AB-M5	Axial Joint for Guided Positioning Elements
6901058	ABVA-M5	Axial joint for guided positioning element, stainless steel

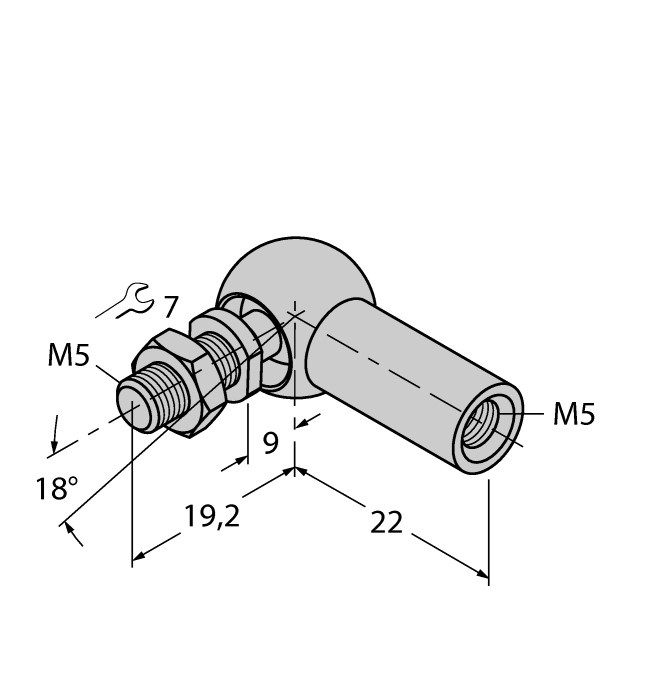

6901059	RBVA-M5	Angle joint for guided positioning element, stainless steel

Functional accessories

6967114	TX1-Q20L60	Teach adapter for inductive encoders, linear position, angle, ultrasonic and capacitive sensors
