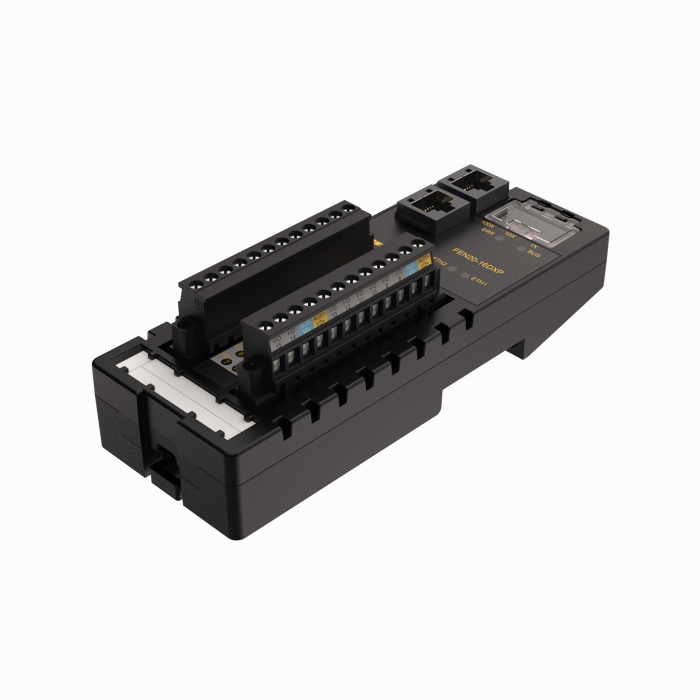

Product FEN20-16DXP
Compact IP20 multiprotocol Ethernet I/O module
16 universal digital channels
Order number: 6931089- EtherNet/IP slave
- Modbus TCP slave
- PROFINET slave
- 2 RJ45 ports for the Ethernet connection
- Integrated Ethernet switch
- 10/100 Mbps
- DIN rail mount housing
- 16 universal digital channels, DI / DO
- 24 VDC, PNP
- Output current: 1.0 A
- Protection class IP20
General data
| EAN | 4047101308655 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85369095000 |
| Country of origin | US |
| Weight | 188.241 g |
Technical Data
| Network protocol | Modbus TCP, PROFINET, EtherNet/IP |
| Signal type | Digital input/output, Digital output, Digital input |
| Connection technology signal | Screw terminal |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | UL |
Data Sheets
| German | 217 KB |
| English | 216 KB |
| French | 218 KB |
| Spanish | 220 KB |
| Czech | 219 KB |
| Dutch | 217 KB |
| Romanian | 217 KB |
| Russian | 231 KB |
| Polish | 221 KB |
| Turkish | 220 KB |
CAD File
Configuration File
EPLAN Electric P8
General Catalog
Manual
Manufacturer's Declaration
Product Flyer
| Compact fieldbus stations in IP20 for PROFIBUS-DP and DeviceNet | 455 KB |
| Compact fieldbus stations in IP20 for multiprotocol Ethernet | 388 KB |
