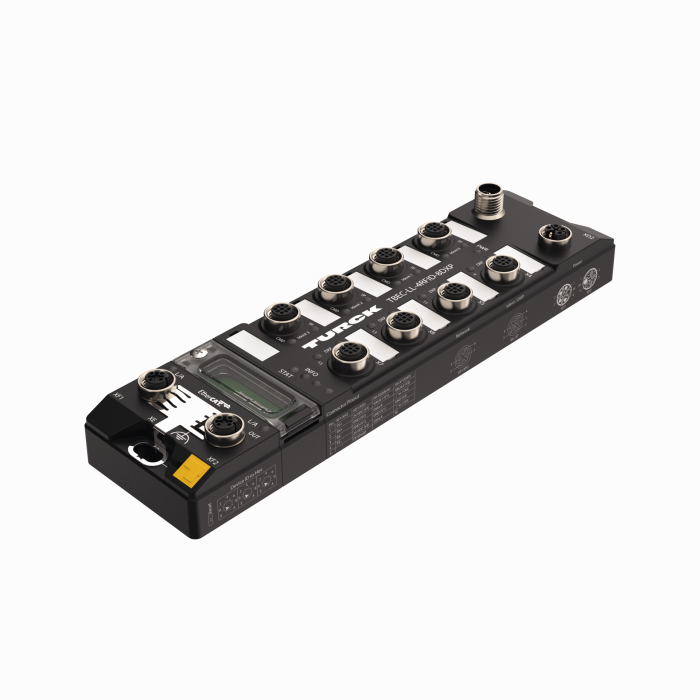

Product  TBEC-LL-4RFID-8DXP

Compact RFID Module for EtherCAT

4 RFID Channels (HF/UHF) and 8 Configurable Digital Channels as PNP Inputs and/or 2 A Outputs

Order number: 100002925
    • EtherCAT slave according to Modular Device Profile
    • M12 males, L-coded, for power supply
    • 4 channels with M12 connector for RFID
    • 8 configurable digital channels as 2 A pnp inputs and/or outputs
#

General data

EAN 4047101471250
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85389099990
Country of origin DE
Weight 572 g

Technical Data

Network protocol EtherCAT
Signal type RFID, Digital input, Digital input/output, Digital output
Connection technology signal M12
Protection class IP65 / IP67 / IP69K
Ambient temperature -40…+70 °C

Connectivity accessories — Power supply

RKP56PLB-2/TXG Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PUR, gray; other cable lengths and qualities available, see www.turck.com
RKP56PLB-2-RSP56PLB/TXG Extension cable, M12 female, straight, 5-pin to M12 male, straight, 5-pin; cable length: 2 m, jacket material: PUR, gray; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — I/O

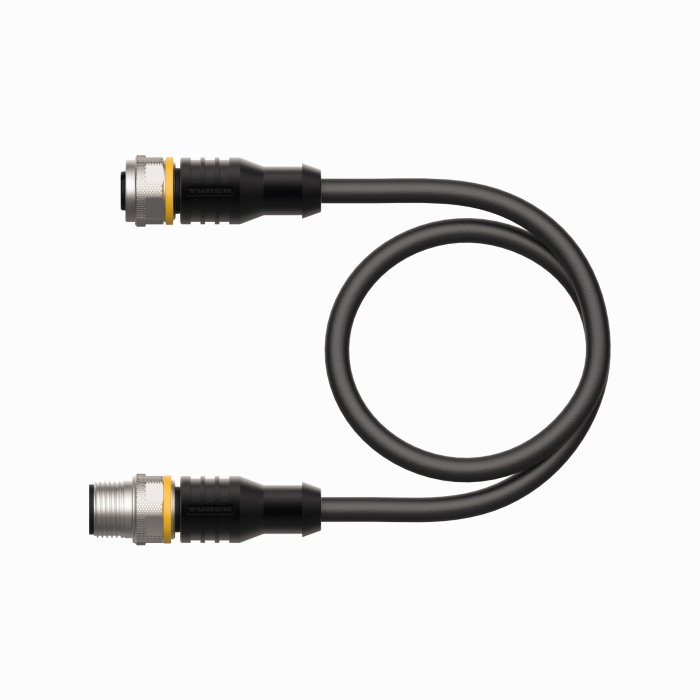

RKC4.4T-2-RSC4.4T/TXL Extension cable, M12 female, straight, 4-pin to M12 male, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and qualities available, see www.turck.com
VBRS4.4-2RKC4T-1/1/TXL 2-port junction systems — Y-splitter with cable, M12 male connector, straight, 4-pin — 2 × M12 female connector, straight, 3-pin, cable length: 1 m, jacket material: PUR, black; other cable lengths and qualities available, see www.turck.com
WKC4.4T-2-RSC4.4T/TXL Extension cable, M12 female, angled, 4-pin to M12 male, straight, 4-pin, cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — Network

RSSD-RJ45S-4416-2M Cable for Industrial Ethernet, M12 connector, straight to RJ45 connector, straight, cable length: 2 m, jacket material: PUR, green; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — Technology

RK4.5T-2-RS4.5T/S2500 BL ident cable, M12 female connector, straight to M12 male connector, straight, cable length: 2 m, jacket material: PUR, yellow; other cable lengths and qualities available, see www.turck.com
RK4.5T-2-RS4.5T/S2503 BL ident cable, M12 female connector, straight to M12 male connector, straight, cable length: 2 m, jacket material: PUR, black; other cable lengths and qualities available, see www.turck.com
RSCV-RKCV5500-2M/S2500 Cable for RFID applications in the food industry, M12 connector, straight to M12 female connector, straight, cable length: 2 m, jacket material: PPEDEM, white; other cable lengths and qualities available, see www.turck.com
