Product  S18LGRYP

LED Signal Light

Beacon

Order number: 3021218

Alternative order number : 21218

    • LED all-round visible
    • Individually controllable

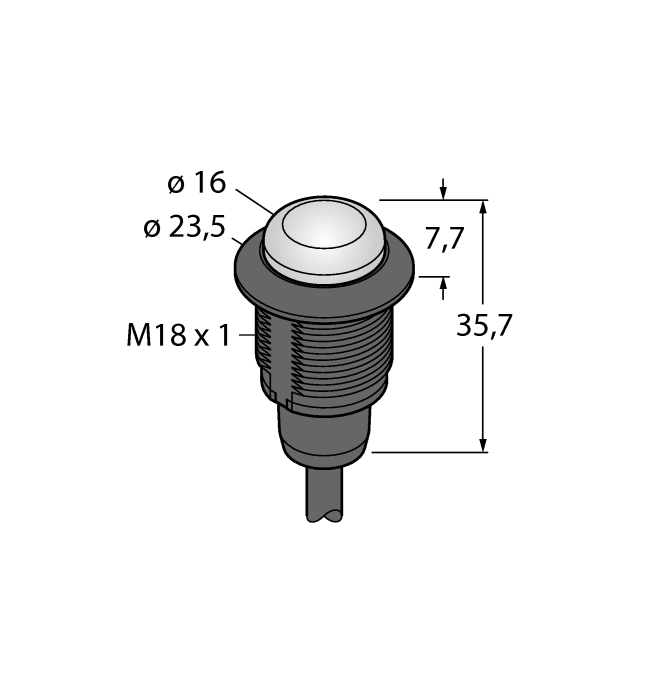

    • Mechanical screw-in thread M18x1
    • Protection classes IP67 / IP69K
    • UV-resistant materials
    • Current consumption per LED color: max. 25 mA
    • Multicolor: Green (COL 1) / Red (COL 2) / Yellow (COL 3)
    • Cable 2 m
    • Operating voltage 10…30 VDC
#

General data

EAN 662488212186
eCl@ss-Code (V5.1.4): 27371201 -/- Indicator
Customs tariff number 85318070000
Country of origin CN
Weight 81.65 g

Technical Data

Function Spotlight
Light type Green, Red, Yellow
Number of colors/segments 3
Dimmable No
Cascadable No
Electrical connection Cable
Cable length 2.0  m
Housing material Plastic, PC, Black
Window material Polycarbonate, diffuse
Ambient temperature -40…+50 °C
Protection class IP67/IP69
