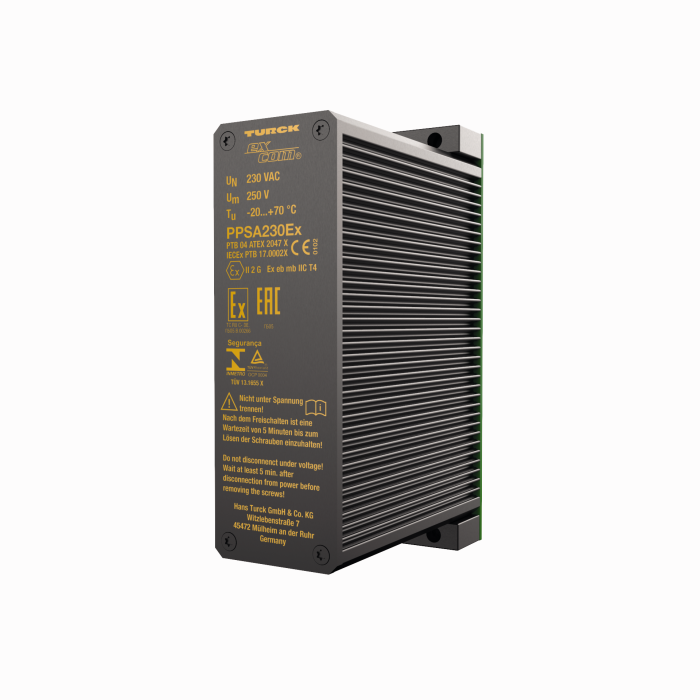

Product PPSA230EX
excom I/O System
Converter, 230 VAC
Order number: 6900293- AC/DC converter for DC supply of DC power supply module
General data
| EAN | 4047101112535 |
| eCl@ss-Code (V5.1.4): | 27250311 -/- Power supply (decentralized periphery) |
| Customs tariff number | 85044083900 |
| Country of origin | DE |
| Weight | 1975 g |
Technical Data
| Network protocol | PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET |
| Signal type | Power supply |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Power Supplies |
| Ambient temperature | -20…+70 °C |
| Protection class | IP50 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, DNV GL, BV, LR, KR, CE |
