Product MT-PPS
excom I/O System

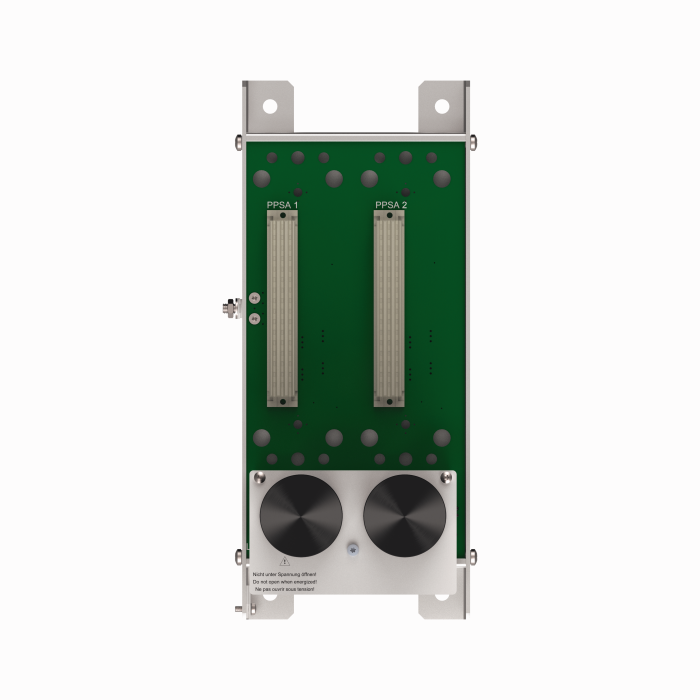

Upstream Subrack for PPSA
Order number: 9100516- Upstream connected subrack for up to 2 AC/DC converters
General data
| EAN | 4047101015362 |
| eCl@ss-Code (V5.1.4): | 27250301 -/- Module rack (periphery) |
| Customs tariff number | 85381000000 |
| Country of origin | DE |
| Weight | 1394 g |
Technical Data
| Network protocol | PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Module Racks |
| Ambient temperature | -20…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, KOSHA, EAC Ex, LR, KR, DNV GL, UKCA, CE |
Data Sheets
| German | 304 KB |
| English | 302 KB |
| French | 303 KB |
| Spanish | 304 KB |
| Czech | 304 KB |
| Dutch | 303 KB |
| Romanian | 303 KB |
| Russian | 319 KB |
| Polish | 303 KB |
| Chinese | 329 KB |
| Turkish | 303 KB |
Approval
Manual
Product Catalog
Product Overview
| Modular I/O Systems and Compact I/O Modules in IP20 and IP67 | 1559 KB |
| Products and Solutions for Efficient Automation | 2173 KB |
| excom I/O system | 6454 KB |
