Product  TBEN-S2-4AI

Compact Multiprotocol I/O Module for Ethernet

4 Analog Inputs, Configurable as Voltage, Current, RTD or Thermocouple

Order number: 6814025
    • PROFINET device, EtherNet/IP device or Modbus TCP slave
    • Integrated Ethernet switch
    • Supports 10 Mbps / 100 Mbps
    • 2x M8, 4-pin, Ethernet fieldbus connection
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
    • M8 connector, 4-pin, for power supply
    • Each channel is freely selectable for voltage, current, RTD, resistance or thermocouple
    • Measuring ranges:
    • Voltage: ±500 mV, ±100 mV, ±50 mV, ±1 V, 0/1–5 V, ±10 V, 0/2–10 V
    • Current: 0/4–20 mA, ±20 mA
    • RTD: PT100, NI100, PT200, PT500, PT1000, NI1000
    • Resistance: 0–100 Ω/400 Ω/2 kΩ/4 kΩ
    • Thermocouples: Type B, C, E, G, J, K, N, R, S, T
    • Inputs differential or common reference
    • FLC/ARGEE programmable
#

General data

EAN 4047101309249
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85369095000
Country of origin DE
Weight 215 g

Technical Data

Network protocol Modbus TCP, EtherNet/IP, PROFINET
Signal type Analog input, Temperature
Connection technology signal M12
Device type I/O Module, Compact station, Field Logic Controller (ARGEE)
Fieldbus transmission rate 10/100 Mbps
Fieldbus connection technology 2 × M8, 4-pin
Ambient temperature -40…+70 °C
Protection class IP65/IP67/IP69K
Approvals ATEX Zone 2/22, cULus

Connectivity accessories — Power supply

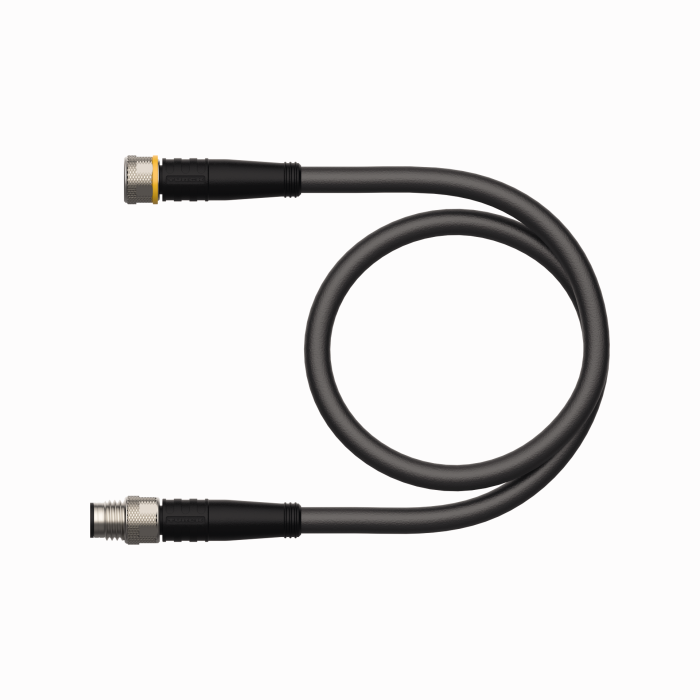

PKG4M-2-PSG4M/TXL Connection cable, M8 female, straight, 4-pin to M8 male, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and qualities available, see www.turck.com

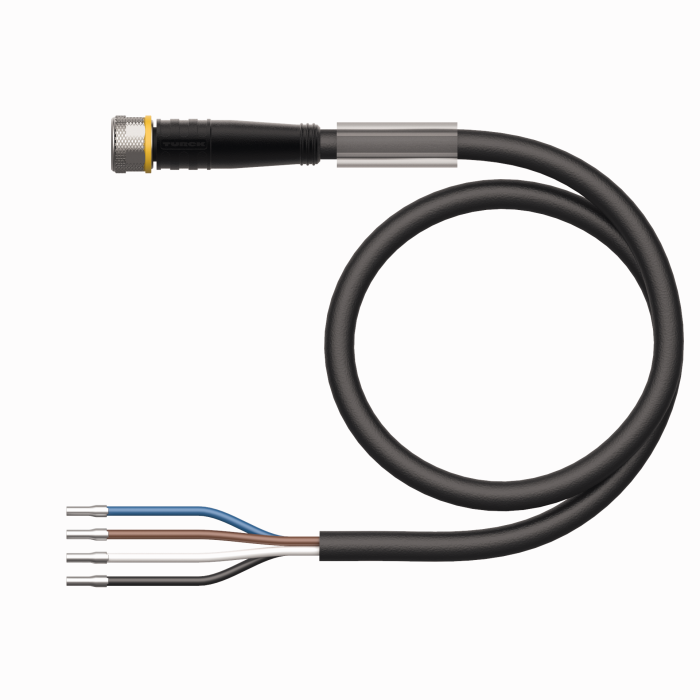

PKG4M-2/TXL Connection cable, female M8, straight, 4-pin, cable length: 2 m, sheath material: PVC, black; cULus approval; other cable lengths and qualities available, see www.turck.com
PKW4M-2/TXL Connection cable, female M8, angled, 4-pin, cable length: 2 m, sheath material: PVC, black; cULus approval; other cable lengths and qualities available, see www.turck.com

Connectivity accessories — I/O

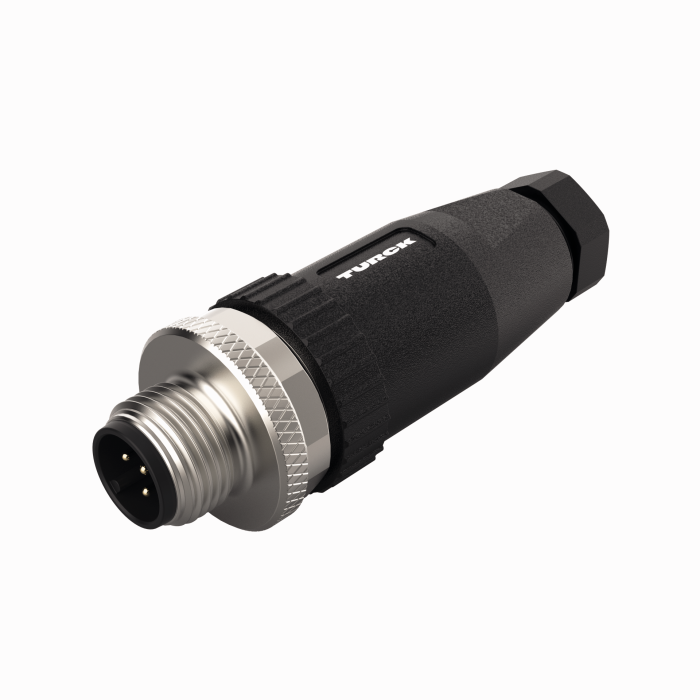

WAS5-THERMO Compensating connector with Pt1000 for TBEN-S2-4AI operating mode thermocouple

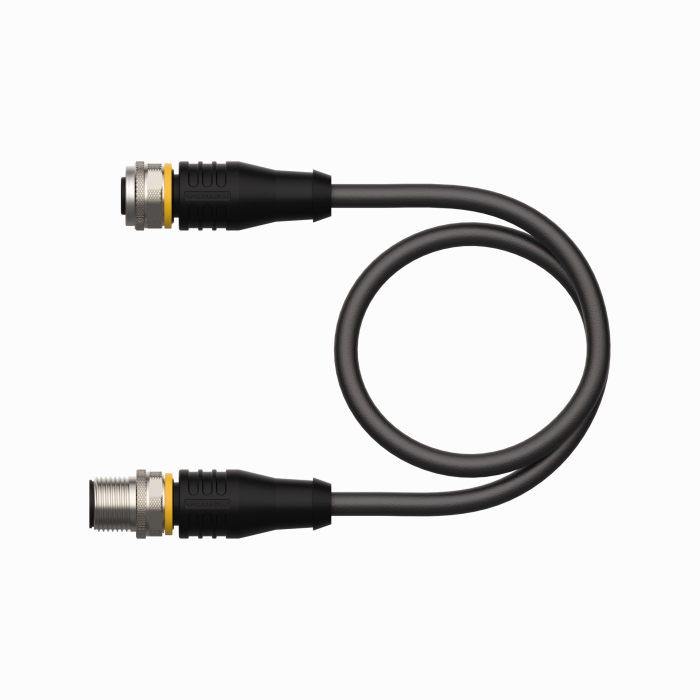

RKS4.5T-2-RSS4.5T/TXL Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; shielded, cable length: 2 m, jacket material: PUR, black; cULus approval; other cable lengths and versions available, see www.turck.com

Connectivity accessories — Network

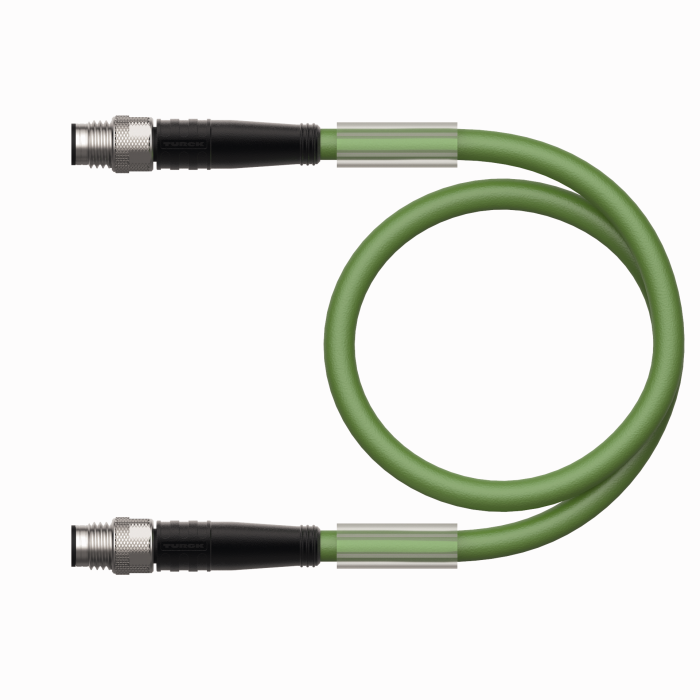

PSG4M-0.2-PSG4M/TXN Cable for Industrial Ethernet, used as a bridge for connecting the TBEN-S modules; M8 male connector, straight to M8 male connector, straight, cable length: 0.2 m, jacket material: PUR, green
PSGS4M-PSGS4M-4416-2M Cable for Industrial Ethernet, M8 male, straight to M8 male, straight, cable length: 2 m, jacket material: PUR, green; other cable lengths and qualities available, see www.turck.com

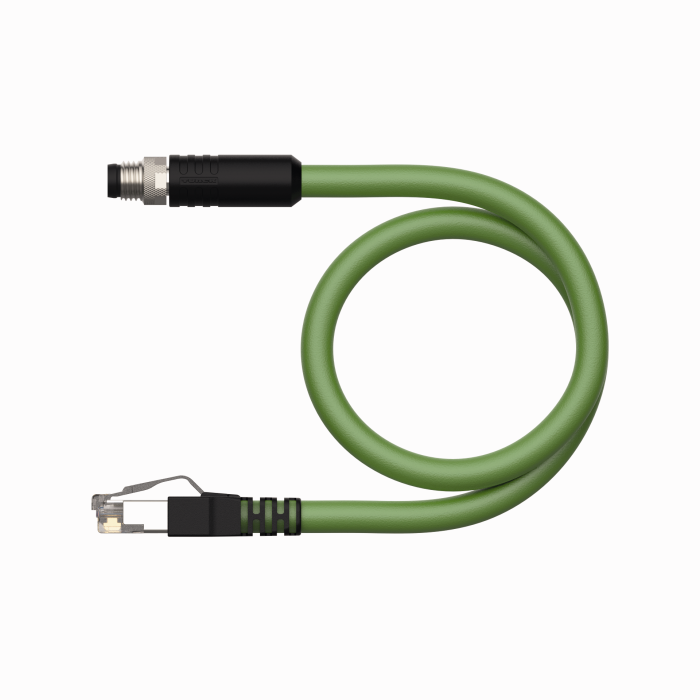

PSGS4M-RJ45S-4416-2M Cable for Industrial Ethernet, M8 male, straight to RJ45 male, straight, cable length: 2 m, jacket material: PUR, green; other cable lengths and qualities available, see www.turck.com

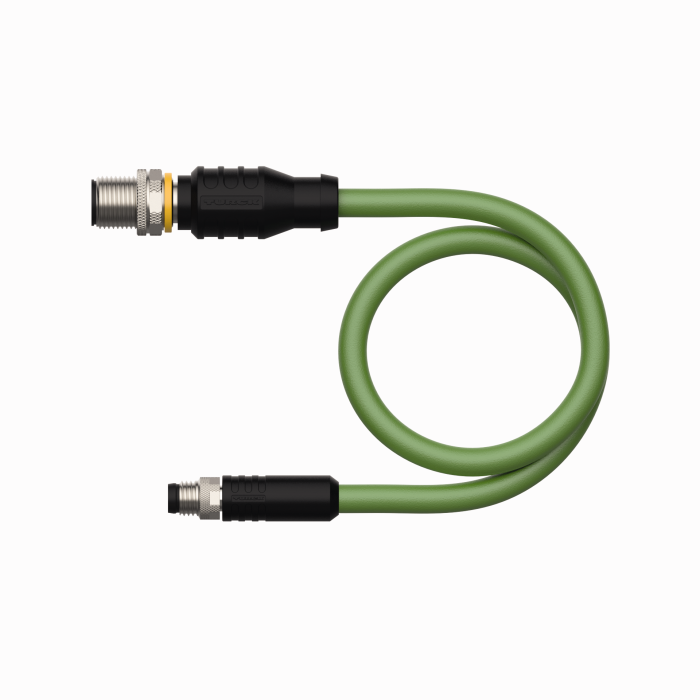

RSSD-PSGS4M-4416-2M Cable for Industrial Ethernet, M12 male connector, D-coded, straight to M8 male connector, straight, cable length: 2 m, jacket material: PUR, green; other cable lengths and versions available, see www.turck.com
