Product IMX12-DI01-2S-2T-0/24VDC
Isolating switching amplifier
2-channel
Order number: 7580020- 2 transistor outputs (≤ 10kHz)
- Switchable: 2-channel or signal doubling
- Output mode adjustable (NO/NC mode)
- Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable screw terminals
- ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL
- Use in Zone 2
- SIL 2
General data
| EAN | 4047101310597 |
| eCl@ss-Code (V5.1.4): | 27210121 -/- Isolating switching amplifier |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 157 g |
Technical Data
| Signal type | Digital input |
| Device type | Isolating switching amplifier |
| Ex version | yes |
| Approvals | ATEX |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | 24 VDC |
| Number of channels | 2 |
| Digital output | Transistor output |
| Electrical connection | Removable screw terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
Data Sheets
| German | 228 KB |
| English | 224 KB |
| French | 226 KB |
| Spanish | 227 KB |
| Czech | 227 KB |
| Dutch | 223 KB |
| Romanian | 224 KB |
| Russian | 258 KB |
| Polish | 227 KB |
| Chinese | 291 KB |
| Turkish | 226 KB |
Approval
CAD File
EPLAN Electric P8
EU Declaration of Conformity
Manual
Product Catalog
Product Flyer
Quick Start Guide
Technology Flyer
Mounting accessories
|

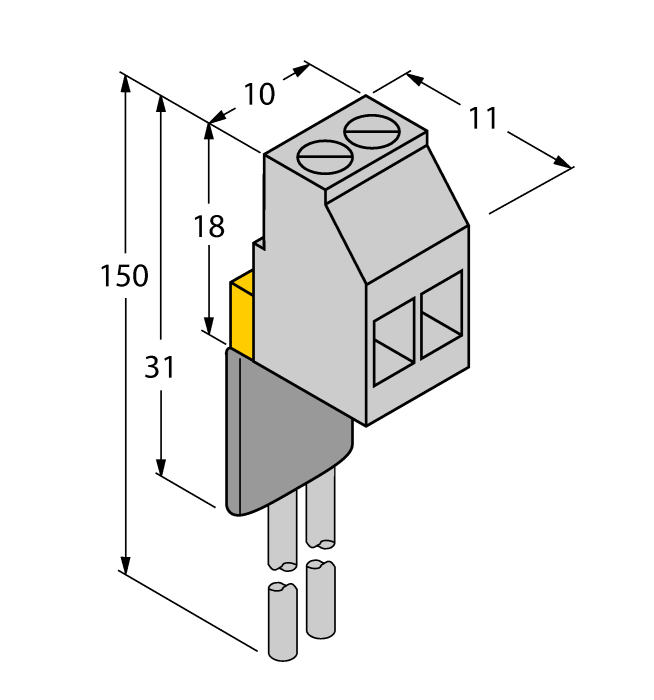

WM1 WIDERSTANDSMODUL
The resistor module WM1 meets the requirements for line monitoring between a mechanical contact and a TURCK signal processor. The input circuit of the signal processor is designed for sensors acc. to EN60947-5-6 (NAMUR) and equipped with a wire-break and short-circuit monitoring function. |
0912101 |
