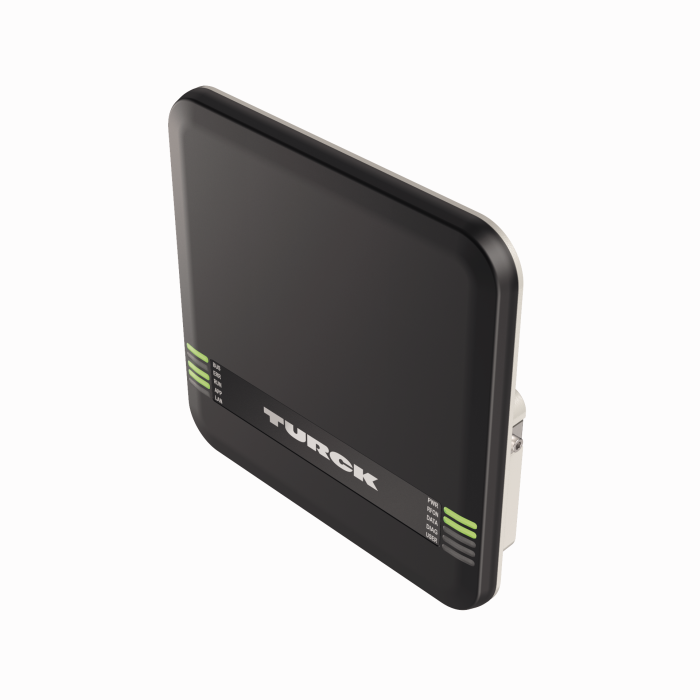

Product TN-UHF-Q300-EU-CDS
UHF Reader
Order number: 100000895- Integrated web server with reader parameterization
- Web-based UHF RFID test tool for easy air interface evaluation
- Resistant to UV radiation
- 4 connections for passive UHF RFID antennas
- 4 configurable digital channels as PNP inputs and/or outputs with 0.5 A per channel
- Programmable according to IEC 61131-3 with CODESYS V3
- Codesys V3 PLC Runtime
- CODESYS OPC-UA server
- PROFINET device, EtherNet/IP device or Modbus TCP master/slave
- "U" data interface for convenient use of the RFID functionality
- Close-to-control integration in PLC systems without the use of a special function module
- LEDs and diagnostics
- Device only suitable for operation in the European Union (EU), India, Turkey and South Africa at 865…868 MHz

General data
EAN | 4047101445077 |
eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
Customs tariff number | 84719000000 |
Country of origin | DE |
Weight | 3564 g |
Technical Data
Product series | TN-UHF-Q300 |
Device type | Identification, Cloud Gateway |
Protection class | IP67 |
Interface | 1 × RJ45 |
Fieldbus master | Modbus TCP |
Fieldbus slave | Modbus TCP, PROFINET, EtherNet/IP, OPC-UA |
Programming | CODESYS V3 |
Ambient temperature | -20…+50 °C |
Data Sheets
German | 1826 KB |
English | 1824 KB |
French | 1826 KB |
Spanish | 295 KB |
Czech | 1826 KB |
Dutch | 1825 KB |
Romanian | 1826 KB |
Russian | 1835 KB |
Polish | 1827 KB |
Chinese | 1909 KB |
Turkish | 1827 KB |
Accessories List
Configuration File
Configuration Manual
Demo Software
Firmware
Function Block/Library
CODESYS Package TN-UHF-Q300-…CDS | 105116 KB |
RFID function module, universal data interface for CODESYS V3 | 1145 KB |
Manual
Manufacturer's Declaration
Product Flyer
Quick Start Guide
Connectivity accessories
![]() |

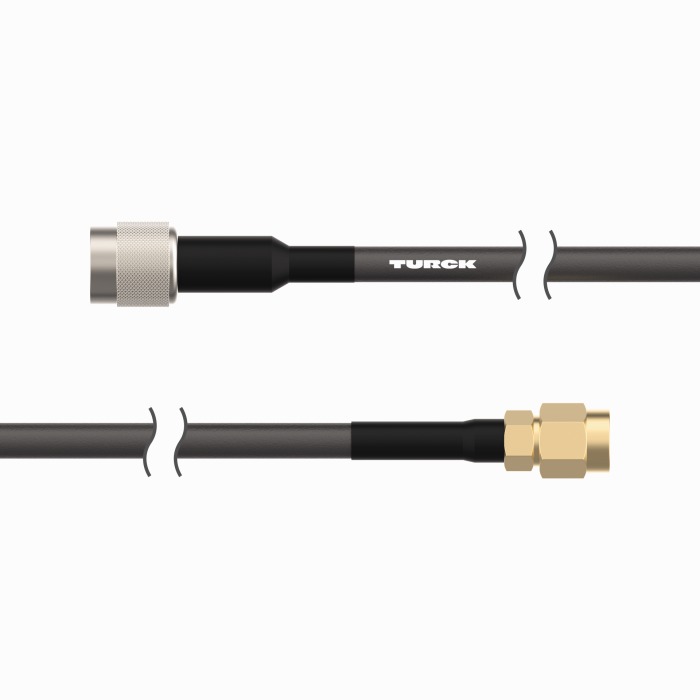

TN-UHF-CBL-HF240-RPTNC-1-SMA
HF240 coaxial cable, length 1 m |
100028191 |
![]() |
TN-UHF-CBL-HF240-RPTNC-2-SMA
HF240 coaxial cable, length 2 m |
100028192 |
![]() |
TN-UHF-CBL-HF240-RPTNC-4-SMA
HF240 coaxial cable, length 4 m |
100028193 |
![]() |
TN-UHF-CBL-HF240-RPTNC-6-SMA
HF240 coaxial cable, length 6 m |
100028194 |
![]() |
TN-UHF-CBL-HF240-RPTNC-8-SMA
HF240 coaxial cable, length 8 m |
100028195 |
![]() |
TN-UHF-CBL-HF240-RPTNC-10-SMA
HF240 coaxial cable, length 10 m |
100028196 |
![]() |
TN-UHF-CBL-HF240-RPTNC-12-SMA
HF240 coaxial cable, length 12 m |
100028197 |
Functional accessories
![]() |

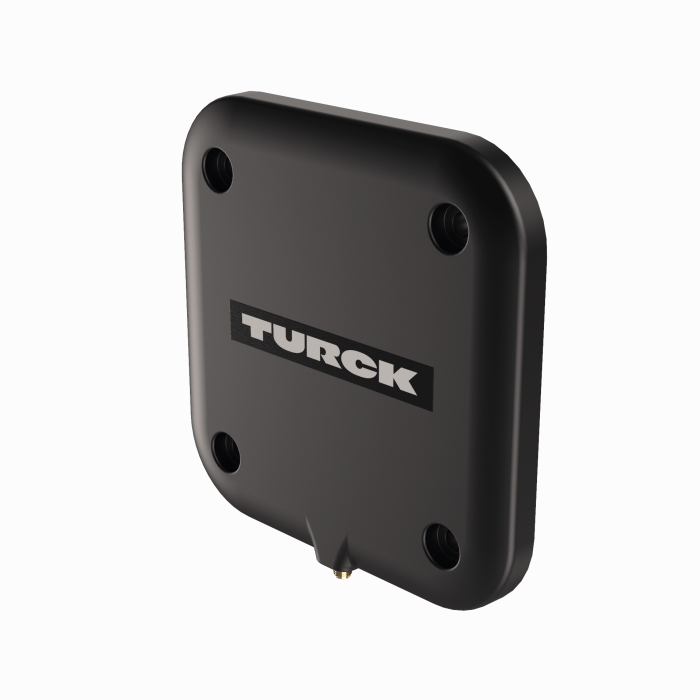

TN-UHF-ANT-Q150-ETSI
Passive UHF RFID antenna with dimensions of 150 × 150 mm |
100028595 |
![]() |
TN-UHF-ANT-NF-Q150-ETSI-FCC
Passive UHF RFID near-field antenna with dimensions of 150 × 150 mm |
100028594 |
![]() |

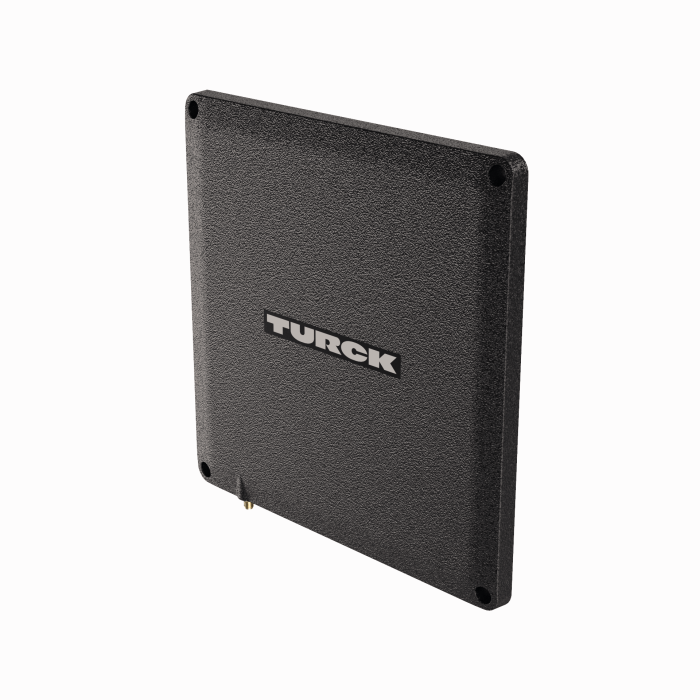

TN-UHF-ANT-Q280-ETSI
Passive UHF RFID antenna with VESA100 pins and dimensions of 280 × 280 mm |
100028601 |
![]() |
TN-UHF-ANT-Q250-ETSI
Passive UHF RFID antenna with dimensions of 250 × 250 mm |
100028599 |
Connectivity accessories — Network
![]() |
RSSD-RJ45S-4416-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to RJ45 male connector, straight, cable length: 2 m, jacket material: PUR, green |
6441631 |
