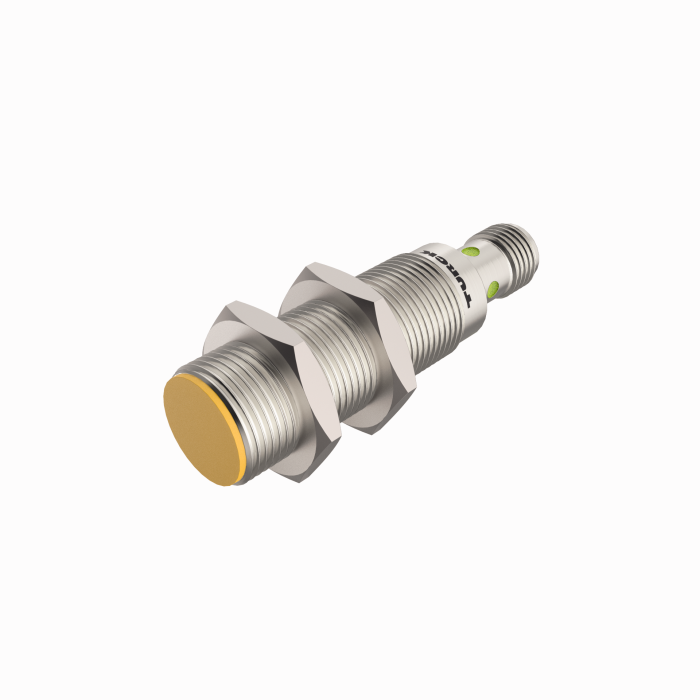

Product TB-M18-H1147
HF Read/Write Head

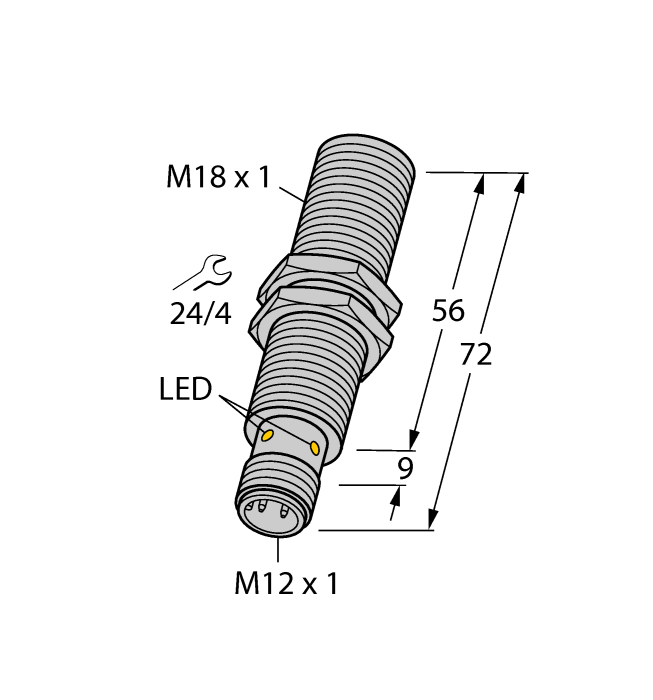

Order number: 7030001- Threaded barrel, M18 x 1
- Chrome-plated brass
- Powered and operated solely via BLident interface module
- M12 × 1 male, connection only via BL ident extension cable
General data
| EAN | 4047101114959 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 72 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Read/Write distance max. | 30 mm |
| Mounting conditions | Flush |
| Network protocol | Connection to RFID interface |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Data Sheets
| German | 1651 KB |
| English | 1651 KB |
| French | 1652 KB |
| Spanish | 659 KB |
| Czech | 1651 KB |
| Dutch | 1651 KB |
| Romanian | 1652 KB |
| Russian | 1658 KB |
| Polish | 1653 KB |
| Chinese | 1738 KB |
| Turkish | 1653 KB |
CAD File
Configuration Manual
Configuration Software
Firmware
Manufacturer's Declaration
Product Flyer
Quick Start Guide
Mounting accessories
|

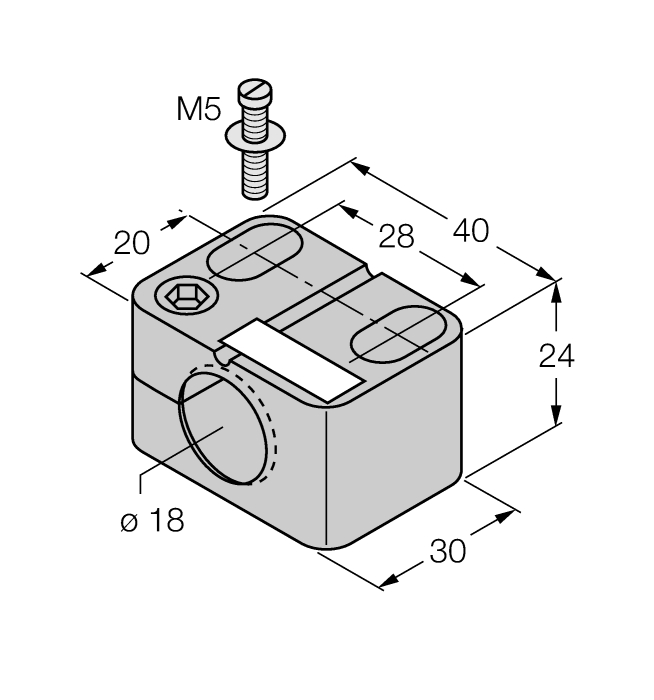

BST-18B
Mounting clamp for threaded barrel sensors, with dead-stop; material: PA6 |
6947214 |
|

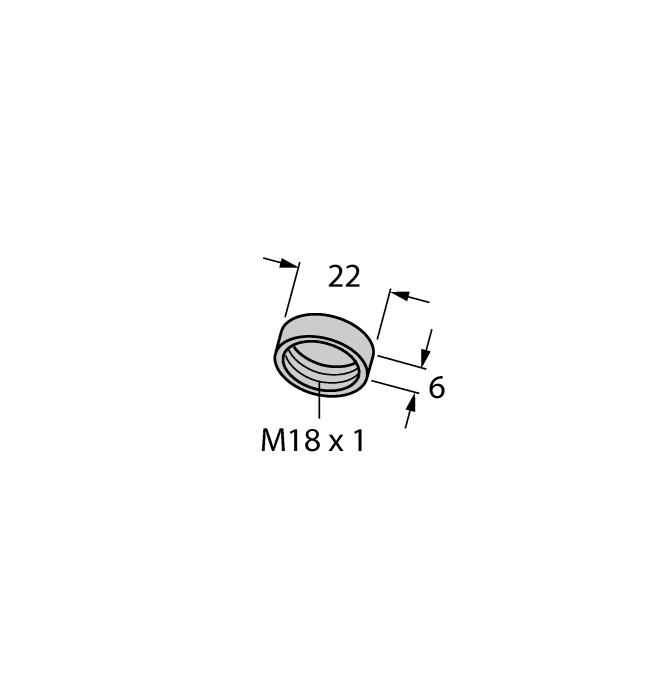

SKN/M18
PTFE-coated closure cap; for use in welding systems and grinding machinery; protection against intense sparking |
69663 |
|

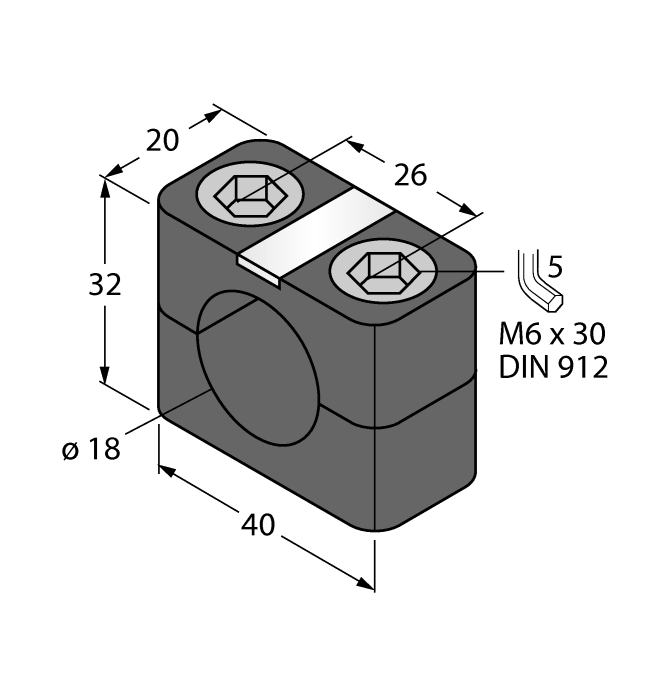

BSN 18
Mounting clamp for threaded barrel sensors; material: PA66-GF |
69472 |
|
BST-18N
Mounting clamp for threaded barrel sensors, without dead-stop; material: PA6 |
6947215 |
|

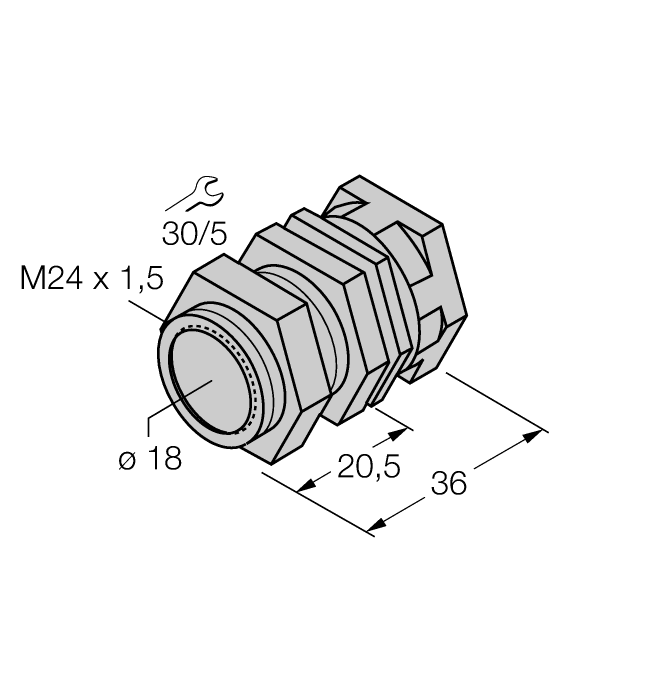

QM-18
Quick-mount bracket with dead-stop; material: Chrome-plated brass. Male thread M24 × 1.5. Note: The switching distance of the proximity switches may change when using quick-mount brackets. |
6945102 |
|

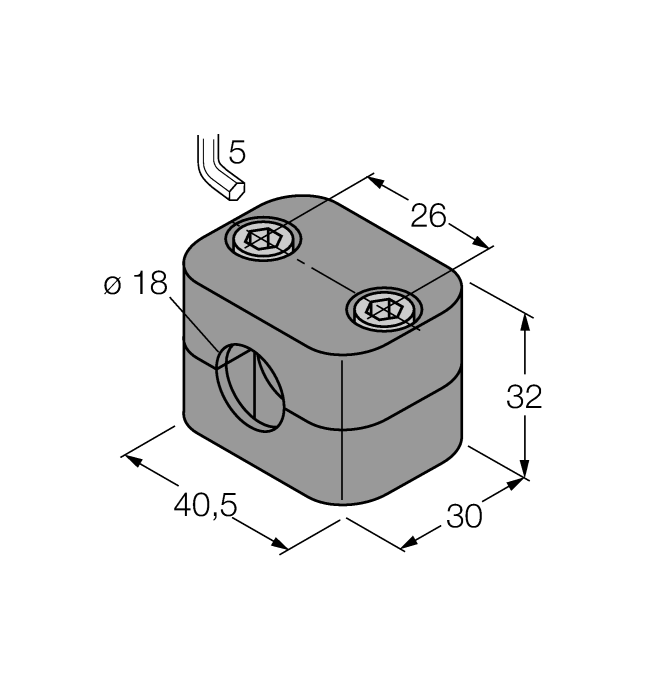

BSS-18
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901320 |
|

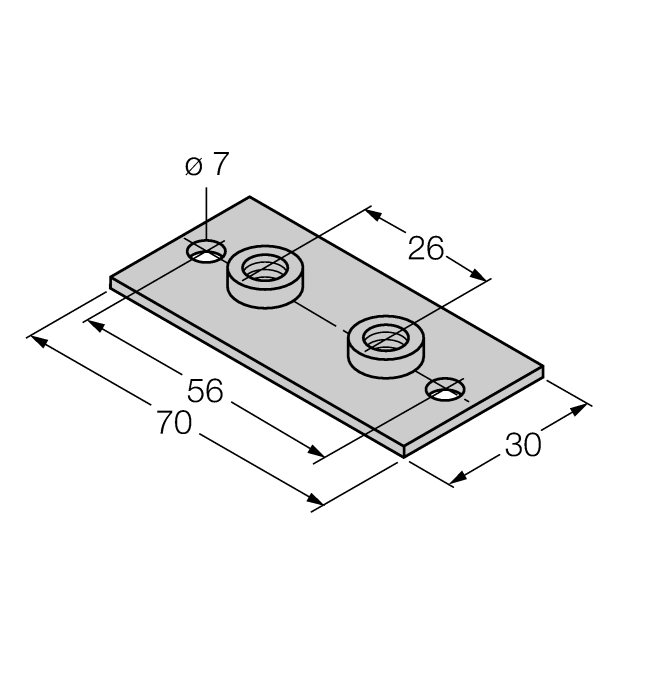

BSS-SPV2
Weld-on plate for BSS mounting brackets |
6901316 |
|

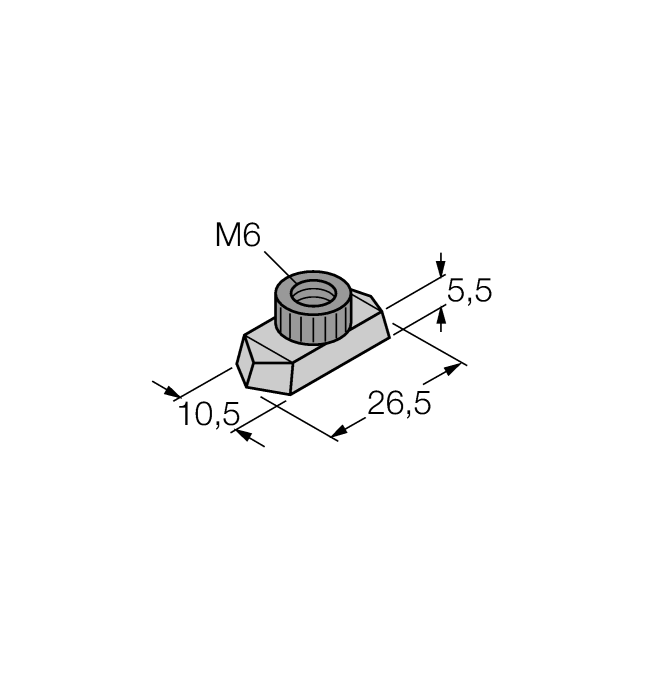

BSS-TSM 2 pcs
DIN rail nut for BSS and BSM mounting clips, for mounting on DIN rails |
6901323 |
|

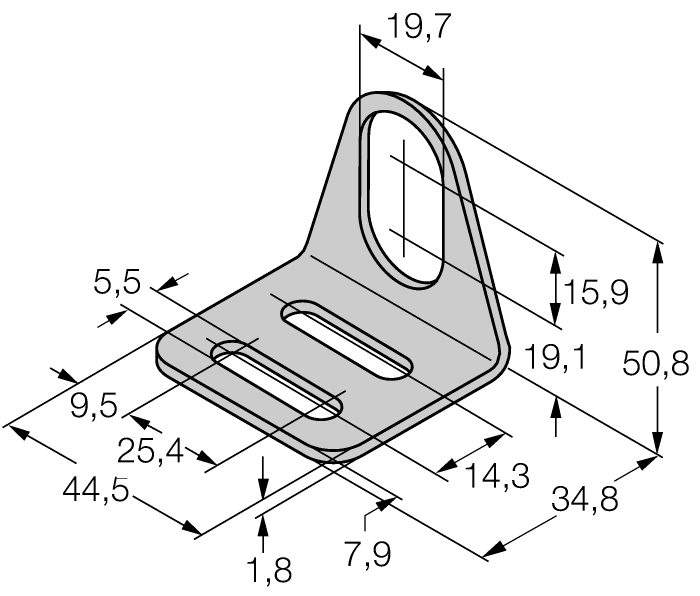

MW18
Mounting bracket for threaded barrel sensors; material: Stainless steel A2 1.4301 (AISI 304) |
6945004 |
