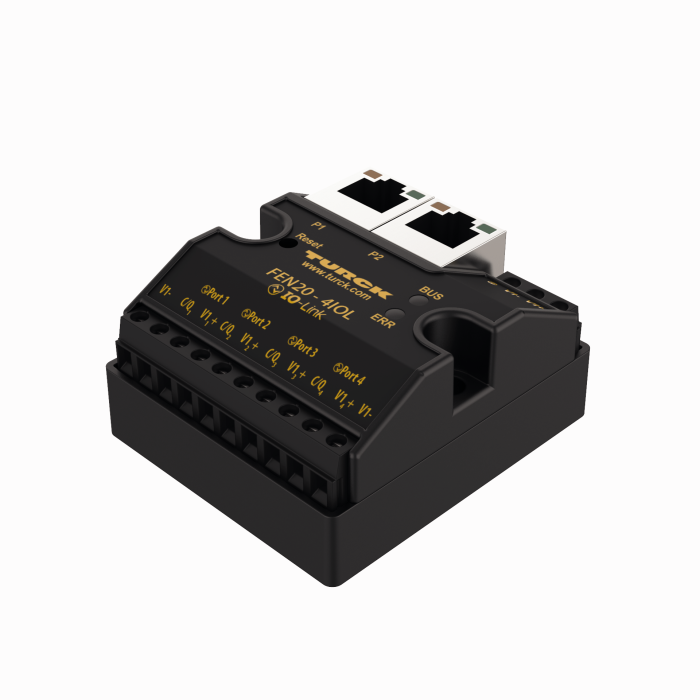

Product  FEN20-4IOL

Compact IP20 Multiprotocol I/O Station

4 IO-Link Master Channels

Order number: 6814140
    • EtherNet/IP™ slave
    • Modbus TCP slave
    • PROFINET slave
    • 2 RJ45 ports for the Ethernet connection
    • Integrated Ethernet switch
    • 10/100 Mbps
    • C/Q can be configured as digital inputs/outputs
    • V1+1…V1+4 configurable as on, switchable or off
    • Protection class IP20

General data

EAN 4047101501711
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85176200000
Country of origin US
Weight 114 g

Technical Data

Network protocol Modbus TCP, PROFINET, EtherNet/IP
Signal type IO-Link, Digital output, Digital input, Digital input/output
Connection technology signal Screw terminal
Device type I/O Module, Compact station, Field Logic Controller (ARGEE)
Fieldbus connection technology Screw terminals
Transmission rate Ethernet 10/100 Mbps, full/half duplex, autonegotiation, autocrossing
Connection technology Ethernet 2 × RJ45
Ambient temperature -25…+70 °C
Protection class IP20
Approvals cULus
