Product TTM150C-206A-G1/2-LI6-H1140-L460-50/150C
Temperature Detection
With Current Output
Order number: 100002533- Miniature design
- Analog output 4…20 mA
- Factory setting -50…150 °C (other settings on request)

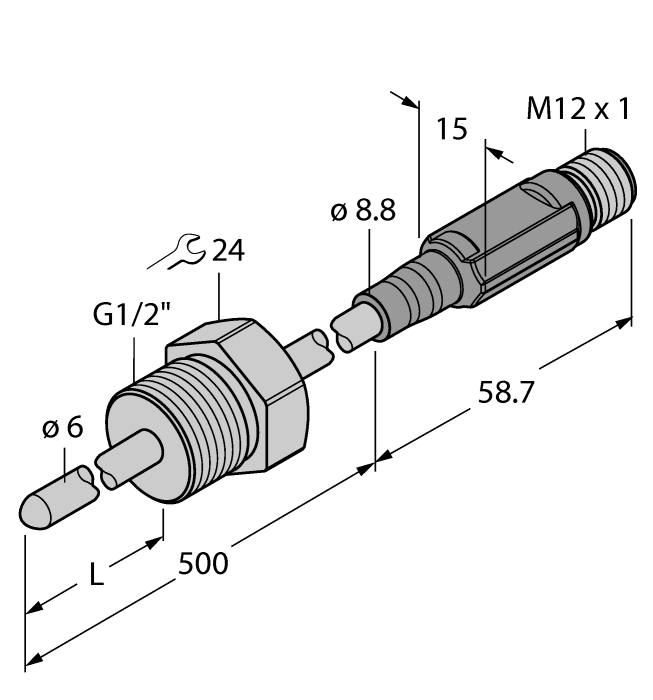

- Process connection G1/2" male thread
- Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
General data
| EAN | 4047101464306 |
| eCl@ss-Code (V5.1.4): | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 90251900900 |
| Country of origin | IT |
| Weight | 156 g |
Technical Data
| Detection type | medium contact |
| Design | Without display (integrated probe) |
| Measuring range | -50…150 °C |
| Immersion depth L | 460 mm |
| Process connection | G 1/2″ male thread |
| Operating voltage | 5.5…32 VDC |
| Current output | 4…20 mA |
| Measuring element | Pt1000 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+80 °C |
| Protection class | IP67 |
| Approvals | CE |
