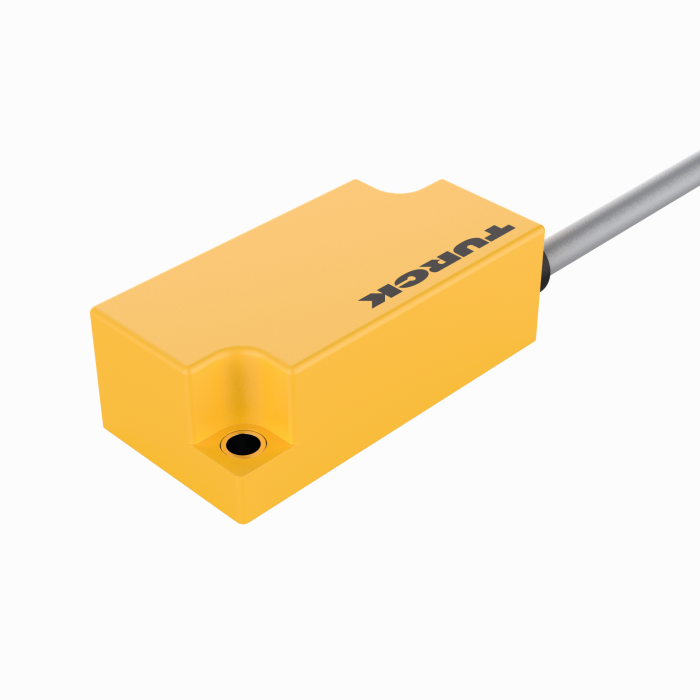

Product BCF10-Q20L60-AP4X
Capacitive Sensor
Order number: 2504028- Fine adjustment via potentiometer
- Increased EMI protection (even with high frequency equipment)
- Suited for highly viscous media
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Cable connection
General data
| EAN | 4047101202311 |
| eCl@ss-Code (V5.1.4): | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 134 g |
Technical Data
| Function | For highly viscous media |
| Design | Rectangular |
| Construction size | 60 x 30 x 20 mm, Q20L60 |
| Rated switching distance | 10 mm |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
