Product  R58BPCRGB1

Photoelectric Sensor

Color Mark Sensor

With Switching Output

Order number: 3015646

Alternative order number : 15646

    • Cable, PVC, 2 m, 5-wire
    • Protection class IP67
    • Programmed via 2 teach buttons
    • Detects extremely small differences in contrast
    • Adjustable on/off delay, 30 ms
    • Automatic selection of red, green and blue light
    • Parallel scan field relative to the housing axis
    • Optics rotatable by 90°
    • Operating voltage: 10…30 VDC
    • PNP switching output
    • Switching behavior adjustable (NO/NC)
    • Teach input
#

General data

EAN 662488156466
eCl@ss-Code (V5.1.4): 27270906 -/- Color mark sensor
Customs tariff number 85365019000
Country of origin CN
Weight 522 g

Technical Data

Function Inspection sensor
Operating mode Contrast sensor
Design Rectangular

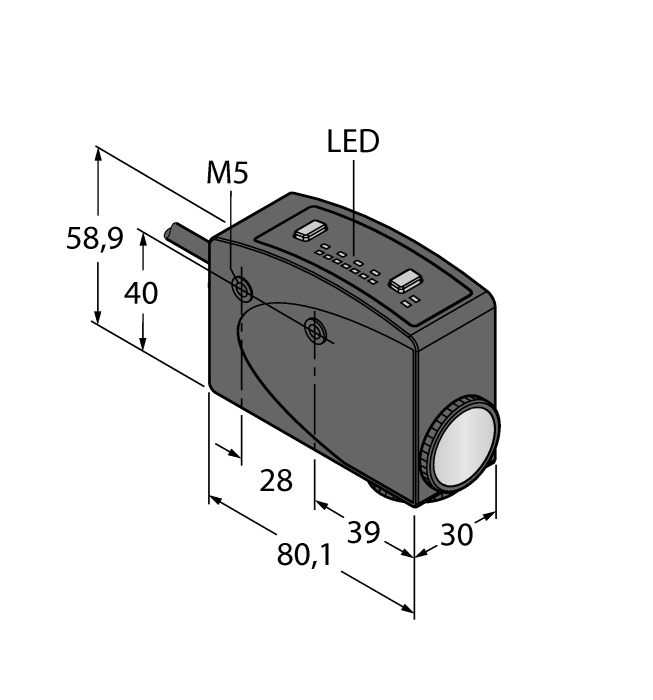

Construction size 80.1 x 30 x 58.9 mm, R58
Range 10 mm
Focal distance 10 mm
Light type RGB
Operating voltage 10…30 VDC
Output function NO contact, PNP
Electrical connection Cable
Cable length 2.0  m
Housing material Metal, Zinc Alloy Die-Cast, Black-finished
Ambient temperature -10…+55 °C
Protection class IP67
Special features keep/defer
