Product Q10AP6DQ
Photoelectric Sensor
Diffuse Mode Sensor
Miniature Sensor
Order number: 3044862Alternative order number : 44862
- Male connector, M8 × 1, 3-pin
- Protection class IP67
- Glass lens
- Operating voltage: 10…30 VDC
- PNP/NPN switching output, light operation
General data
| EAN | 662488448622 |
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 32 g |
Technical Data
| Function | Proximity switch |
| Operating mode | Diffuse |
| Design | Rectangular |

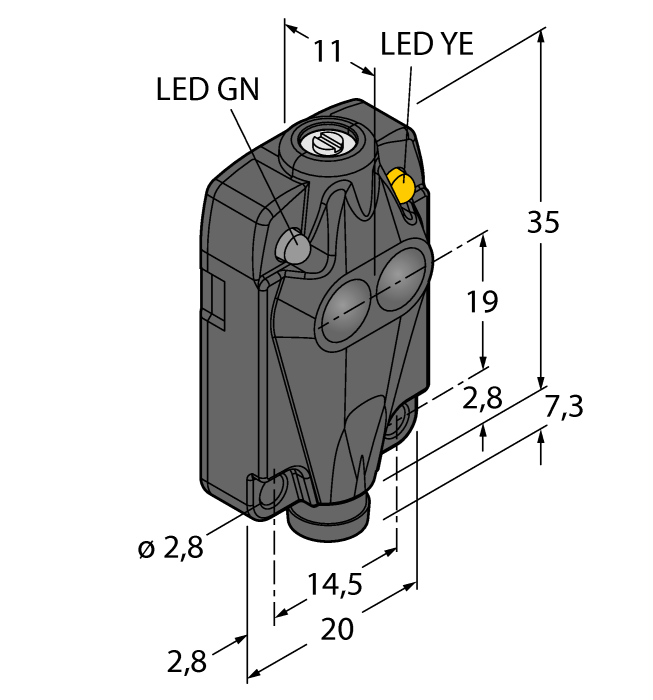

| Construction size | 42.4 x 20 x 10 mm, Q10 |
| Range | 1…500 mm |
| Light type | IR |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, light operation, PNP |
| Electrical connection | Connector, M8 × 1 |
| Housing material | Plastic, Thermoplastic material, Black |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
Connectivity accessories
|

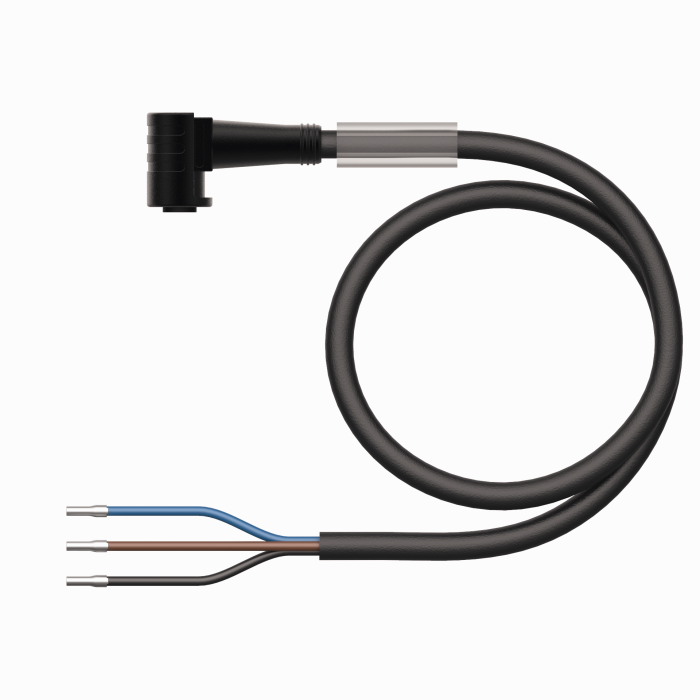

PKW3Z-2/TEL
Connection cable, Ø 8-mm female connector, snap-on with pull-off protection, angled, 3-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6627504 |
