Product Q50AIQ
Photoelectric Sensor
Triangulation Sensor with Analog Output
Order number: 3067604Alternative order number : 67604
- Foreground and background suppression
- Operating range 50…200 mm
- M12 × 1 connector rotatable by 90°
- Operating voltage 15…30 VDC
- Analog current output 4…20 mA
- Selectable output response of 4 ms (fast) and 64 ms (slow)
General data
| EAN | 662488676049 |
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 90314990000 |
| Country of origin | US |
| Weight | 85 g |
Technical Data
| Function | Proximity switch |
| Operating mode | Triangulation |
| Design | Rectangular |

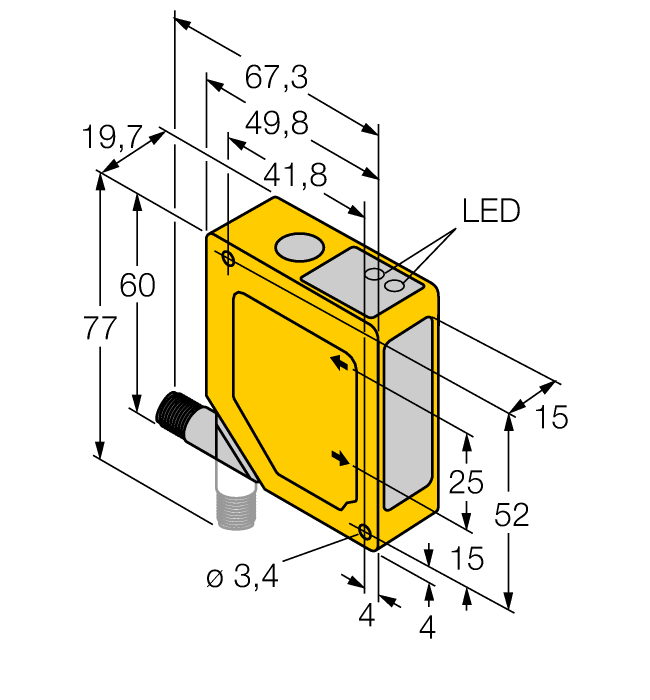

| Construction size | 49.8 x 19.7 x 60 mm, Q50 |
| Range | 50…200 mm |
| Light type | IR |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS/Polycarbonate |
| Ambient temperature | -10…+55 °C |
| Protection class | IP67 |
