Product QL56M6XD15BQ
Photoelectric Sensor
Luminescence Sensor
Order number: 3081326Alternative order number : 81326
- Protection class IP67
- M12 × 1 connector rotatable by 90°
- Operating voltage 10…30 VDC
- PNP or NPN switching output
- 0…7 V analog output
- Non-volatile EEPROM memory
General data
| EAN | 662488813260 |
| eCl@ss-Code (V5.1.4): | 27270908 -/- Luminescence sensor |
| Customs tariff number | 85365019000 |
| Country of origin | HU |
| Weight | 193.23 g |
Technical Data
| Function | Inspection sensor |
| Operating mode | Luminescence sensor |
| Design | Rectangular |

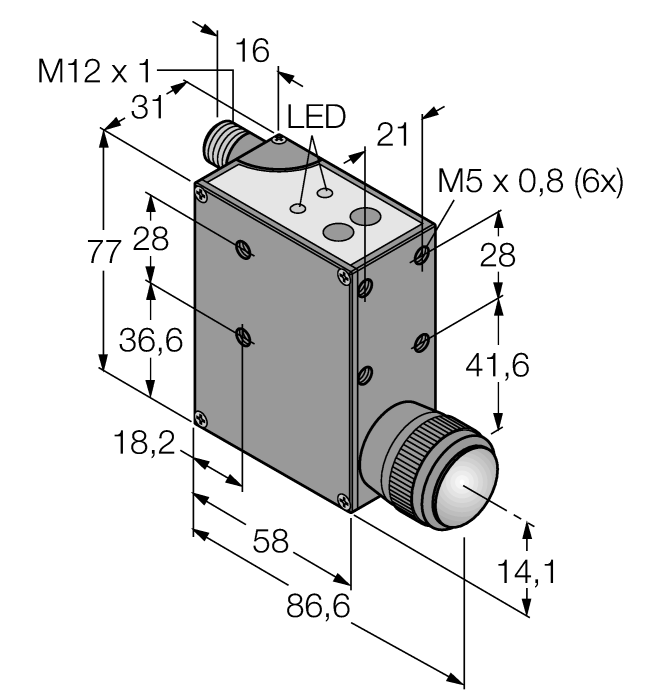

| Construction size | 77 x 31 x 58 mm, QL55 |
| Range | 20 mm |
| Light type | UV |
| Operating voltage | 15…30 VDC |
| Output function | NO contact, PNP/Analog output |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, AL |
| Ambient temperature | -10…+55 °C |
| Protection class | IP67 |
| Special features | keep/defer |
