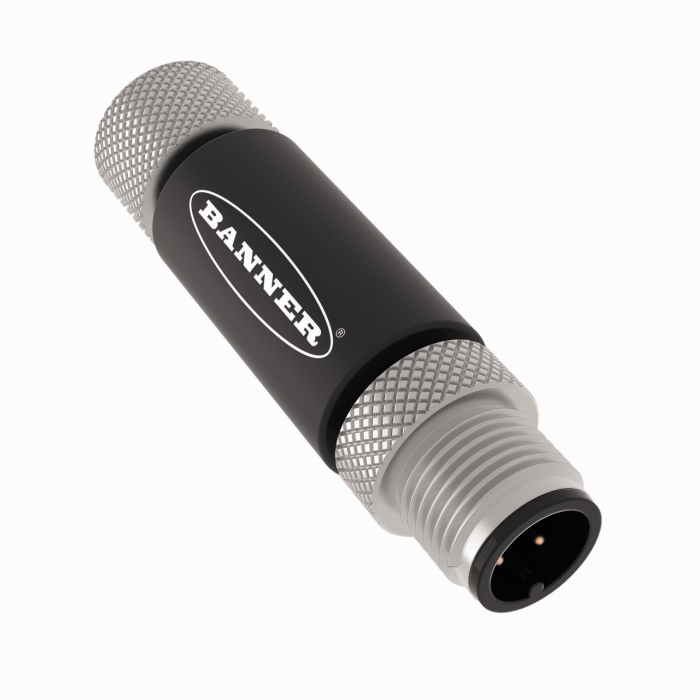

Product  S15C-I-KQ

Converter

Analog Current to IO-Link Converter

Order number: 3809837
    • Direct connection to an analog sensor due to compact design
    • Operating voltage: 18…30 VDC
    • Protection class: IP67
    • Status LEDs for signal strength and signal loss
    • Parameterizable via IO-Link
    • Operating voltage: 18…30 VDC
    • Input: analog, 4…20 mA
    • Output: IO-Link
    • Converts the current signal into 16-bit process data
#

General data

EAN 662488080549
Customs tariff number 85176200000
Country of origin TW
Weight 23.85 g

Technical Data

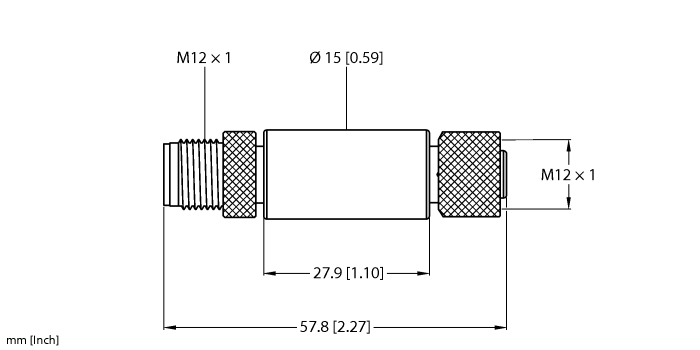

Construction size 57.8 mm
Housing diameter Ø  15  mm
Housing material Plastic, PVC, Black
Ambient temperature 40…+70 °C
Protection class IP67
