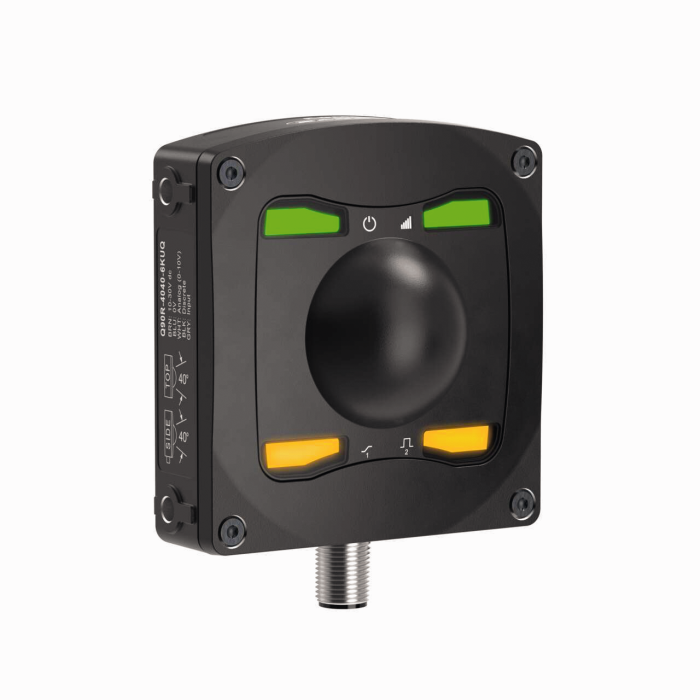

Product Q90R-4040-6KIQ
Radar Sensor
With Switching and Analog Output and IO-Link
Order number: 3815694- Operating voltage 10…30 VDC
- Output 1: PNP/NPN switching output, IO-Link
- Output 2: Current, 4…20 mA analog output
General data
| EAN | 662488224264 |
| eCl@ss-Code (V5.1.4): | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 85261000900 |
| Country of origin | US |
| Weight | 282 g |
Technical Data
| Design | Rectangular |

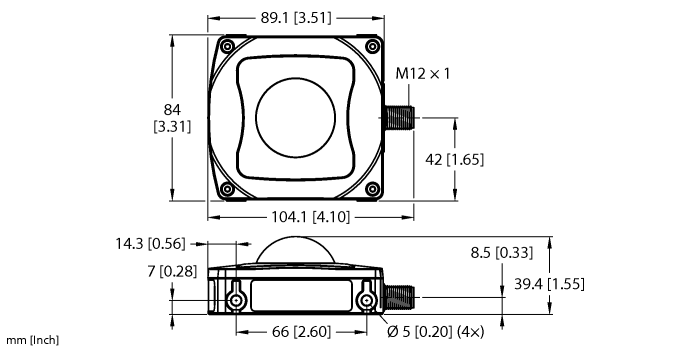

| Construction size | 84 x 17 x 84 mm, Q90R |
| Range | 150…20000 mm |
| Frequency range | 60.00…61.50 GHz |
| Operating voltage | 10…30 VDC |
| Switching element function | NO/NC programmable |
| Output function | Push-pull, PNP/NPN programmable |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Aluminium, AL, Black |
| Ambient temperature | -40…+65 °C |
| Protection class | IP67 |
Data Sheets
| German | 777 KB |
| English | 777 KB |
| French | 778 KB |
| Spanish | 776 KB |
| Czech | 778 KB |
| Dutch | 777 KB |
| Romanian | 778 KB |
| Polish | 778 KB |
| Chinese | 841 KB |
| Turkish | 778 KB |
Configuration File
Configuration Software
Instructions for Use
Manual
| IO-Link Data Reference Guide: Q90R Dual Discrete (KD Models) | 136 KB |
| IO-Link Data Reference Guide: Q90R Analog( KI Models) | 136 KB |
