Product BI1-Q6.5-AP6/S34
Inductive Sensor
Resistant to Magnetic Fields
Order number: 4613401- Rectangular, height 6.5 mm
- Active face, lateral
- Plastic, PP GR‐20
- Resistant to magnetic fields (weld resistant), for DC and AC fields
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
General data
| EAN | 4047101155716 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 22 g |
Technical Data
| Design | Rectangular |

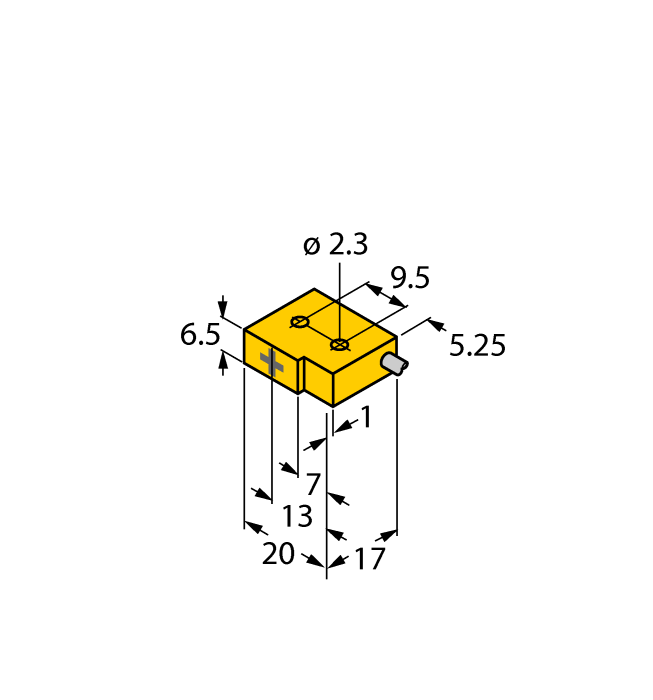

| Construction size | 20.2 x 17.2 x 6.5 mm, Q6.5 |
| Rated switching distance | 1 mm |
| Mounting conditions | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.030 kHz |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, PP GR-20 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Resistant to magnetic fields |
