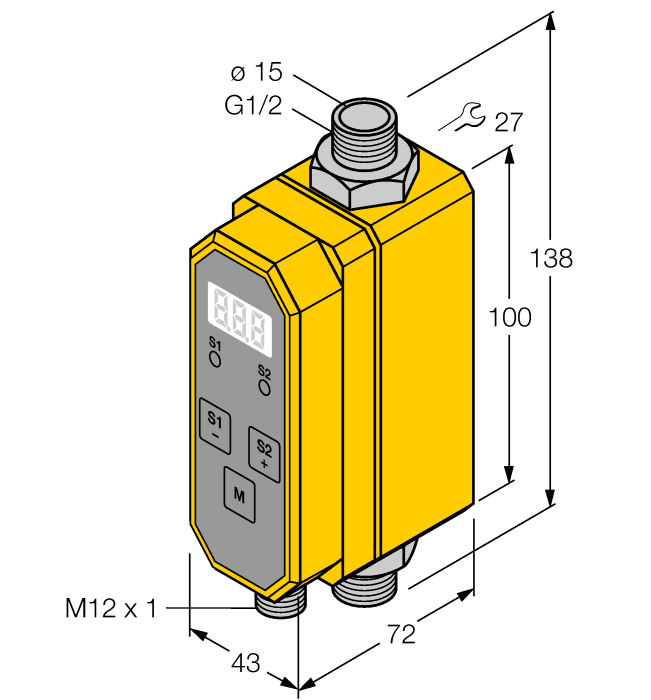

Product FTCI-G1/2D15A4P-2UP8X-H1141/D228
Flow Rate Monitoring
Inline Sensor with Integrated Processor
Order number: 6870137- Flow meters for water
- Calorimetric measuring principle
- 2 switchpoints /outputs flow
- 3-digit display [l/min]
- Programming via button
- Protected via access code 0…255
- Switch ON/OFF delay 0…50 s
- DC 4-wire
- PNP outputs
- NO/NC programmable
General data
| EAN | 4047101172355 |
| eCl@ss-Code (V5.1.4): | 27200403 -/- Flow meter (mass, thermal) |
| Customs tariff number | 90261021000 |
| Country of origin | DE |
| Weight | 552 g |
Technical Data
| Function | Flow rate measurement |
| Design | Inline |
| Process connection | G 1/2'' |
| Medium | liquids |
| Detection type | Calorimetric |
| Operating voltage | 21.6…26.4 VDC |
| Output function | NO/NC programmable, 2 × PNP |
| Electrical connection | Connector, M12 × 1 |
| Sensor material | Stainless steel |
| Housing material | Plastic, PBT |
| Medium temperature | 0…+70 °C |
| Ambient temperature | 0…+60 °C |
| Protection class | IP65 |
Mounting accessories
|

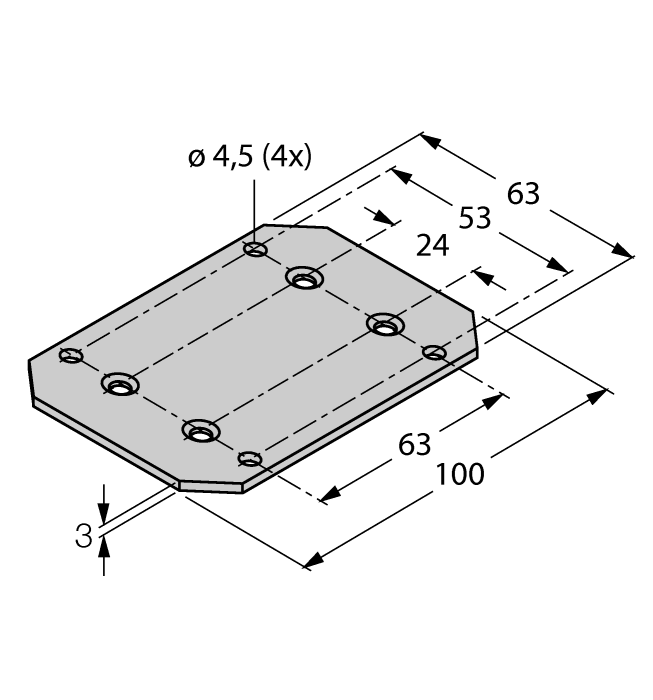

FTCI-MP01AL
Mounting plate for FTCI flow meter for front mounting |
6870040 |
