Product FTCST-A4P-2ARX/230VAC
Freely Rotatable FTCST Flow Sensor
Monitoring of Flow Speed and Medium Temperature
Relay Output 230 VAC NO
Order number: 6870282- Thermodynamic operating principle
- Flow monitoring
- Monitoring of medium temperature
- Switchpoints freely adjustable
- Adjusted via potentiometer
- LED band for indications
- 2 relay switching outputs
- 230 VAC NO
- Switchpoints freely adjustable

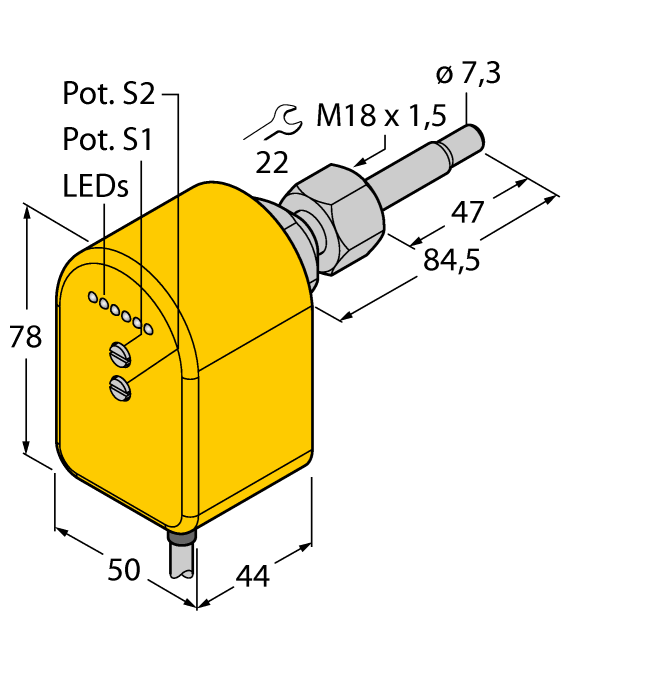

- Freely rotatable sensor
- Plugged in with adapter
- Screw-in adapter, M18 x 1.5
General data
| EAN | 4047101303155 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90261021000 |
| Country of origin | DE |
| Weight | 659 g |
Technical Data
| Function | Flow monitoring |
| Design | Immersion |
| Process connection | M18 × 1.5 female thread |
| Medium | liquids |
| Detection type | Calorimetric |
| Operating voltage | 207…253 VAC |
| Output function | 2 x NO contact, Relay output |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Sensor material | Stainless steel |
| Housing material | Plastic, PBT |
| Medium temperature | -20…+80 °C |
| Ambient temperature | -20…+70 °C |
| Protection class | IP65 |
| Approvals | UL |
