Product THW-3-TRI3/4-A4-L150
Accessories

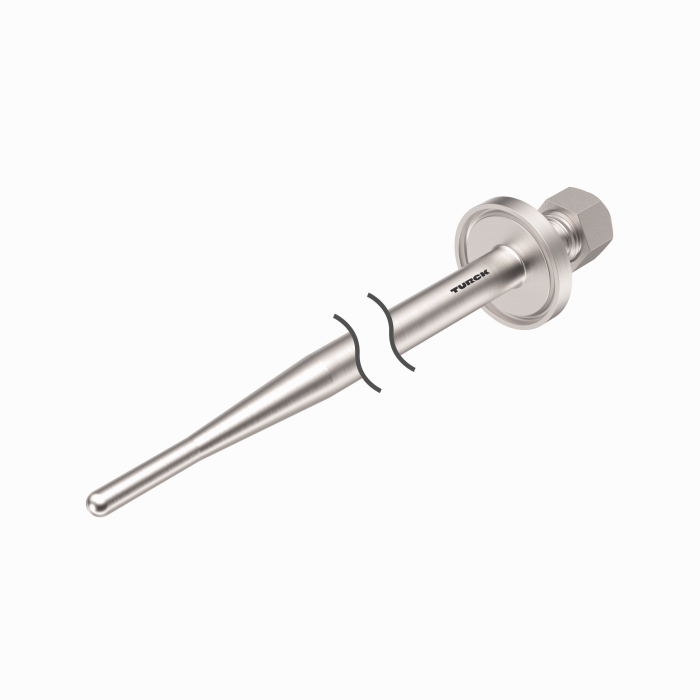

Thermowell
For Temperature Sensors
Order number: 9910453- Thermowell for mounting temperature probes
- End tip diameter 3 mm
- Process connection Tri-Clamp ¾"
- Immersion depth 150 mm
- For use in food and pharmaceutical applications
- Surface roughness Ra > 0.8 µm
- Stainless steel
General data
| EAN | 4047101544107 |
| eCl@ss-Code (V5.1.4): | 27200213 -/- Thermowell (temperature measurement) |
| Customs tariff number | 73072910900 |
| Country of origin | IT |
| Weight | 69 g |

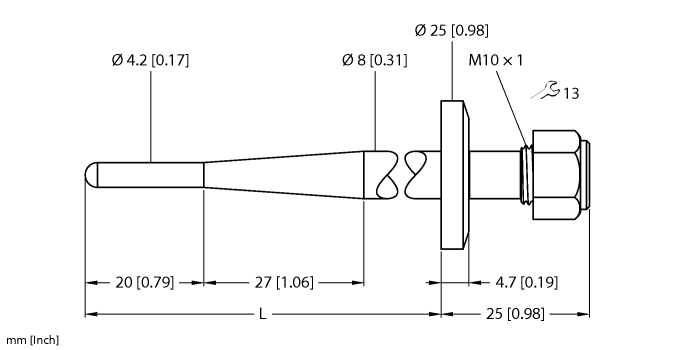

Technical Data
| Accessory type | Thermowell |
| For use with | Temperature sensors |
| Process connection | Tri-Clamp 3/4″ |
| Immersion depth L | 150 mm |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
