Product THW-3-UNI25-A4-L100
Accessories
Thermowell
For Temperature Sensors

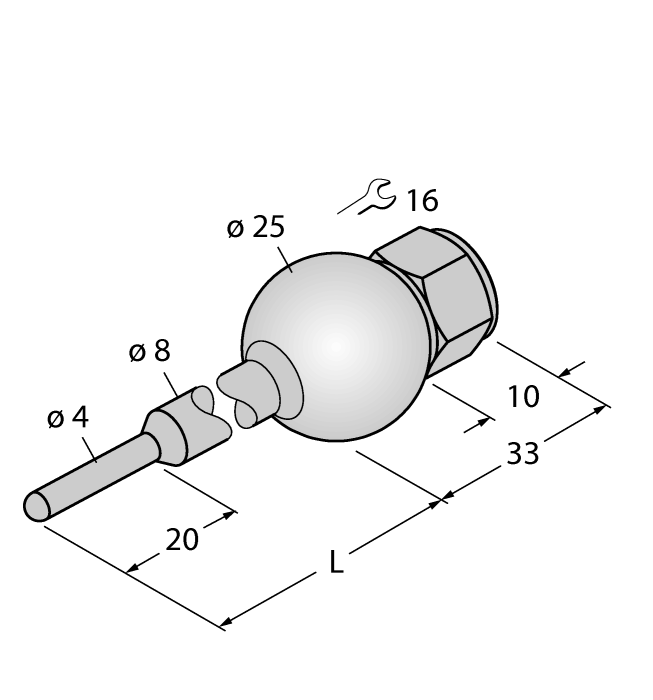

Order number: 9910503- Thermowell for mounting temperature probes
- End tip diameter 3 mm
- Process connection weld-in ball Ø 25 mm
- Immersion depth 100 mm
- Stainless steel
General data
| EAN | 4047101543704 |
| eCl@ss-Code (V5.1.4): | 27200213 -/- Thermowell (temperature measurement) |
| Customs tariff number | 73072910900 |
| Country of origin | IT |
| Weight | 91 g |
Technical Data
| Accessory type | Thermowell |
| For use with | Temperature sensors |
| Process connection | Weld-in ball Ø 25 mm |
| Immersion depth L | 100 mm |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
