Product  TB-EM18WD-H1147-EX

HF Read/Write Head

For Explosion Hazardous Areas or Areas with Extreme Requirements (e.g. Food Industry)

Order number: 7030381
    • Threaded barrel, M18 x 1
    • Stainless steel, 1.4404
    • Front cap made of liquid crystal polymer
    • High protection class IP69K, for harsh environments
    • Special double-lip seal
    • Protection against all common acid and alkaline cleaning agents
    • For the food industry
    • Laser engraved label, permanently legible
    • Powered and operated only via connection to BL ident interface module
    • M12 × 1 connector, connection only via BL ident extension cable
    • ATEX category II 3 G, Ex zone 2
    • ATEX category II 3 D, Ex zone 22

General data

EAN 4047101252583
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 85369095000
Country of origin DE
Weight 75 g

Technical Data

Technology HF RFID
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Threaded barrel
Construction size M18 x 1
Read/Write distance max. 30 mm
Mounting conditions Flush
Network protocol Connection to RFID interface
Housing material Stainless steel, 1.4404 (AISI 316L)
Ambient temperature -25…+70 °C
Protection class IP68/IP69K
Approvals ATEX II 3 G, ATEX II 3 D

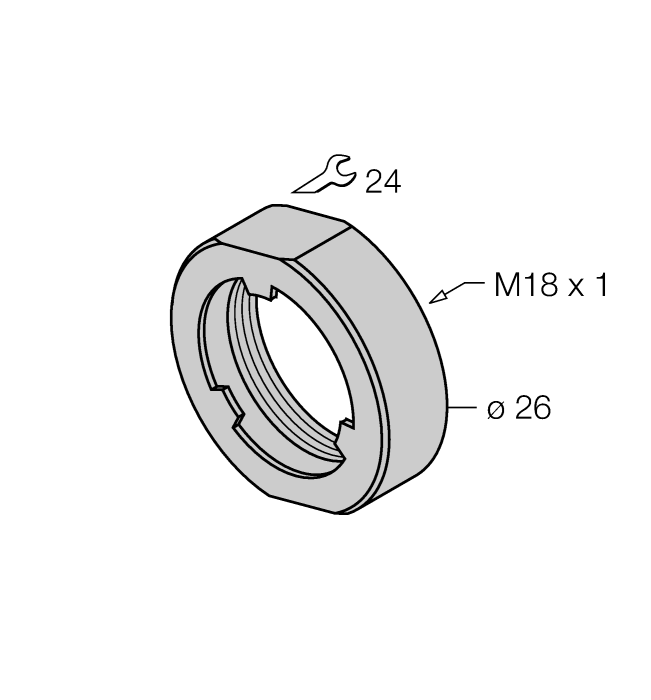

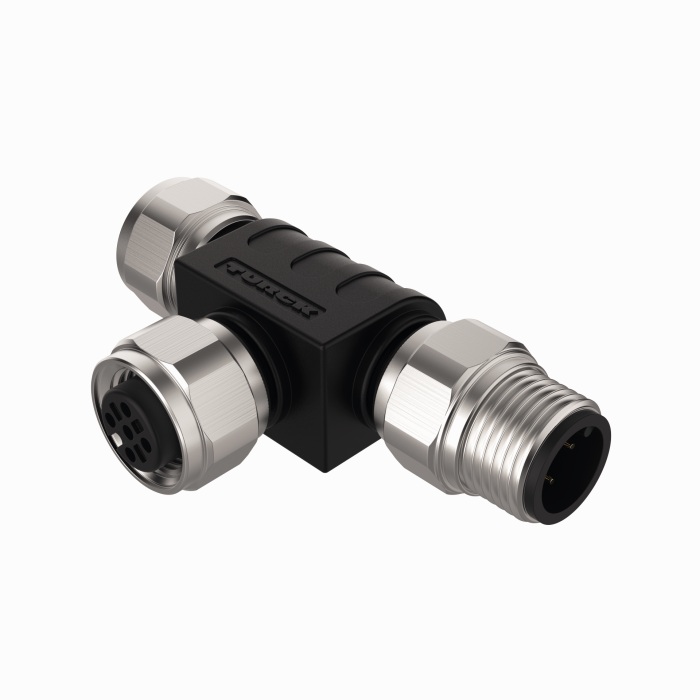

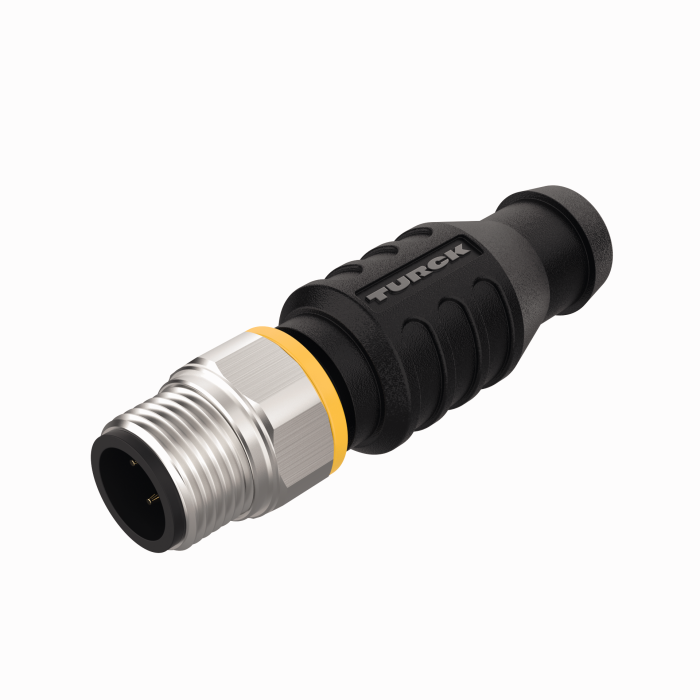

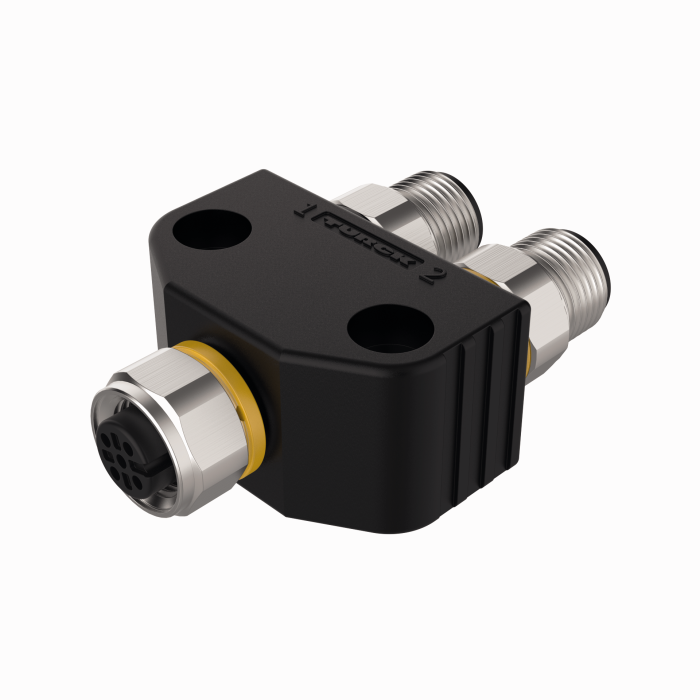

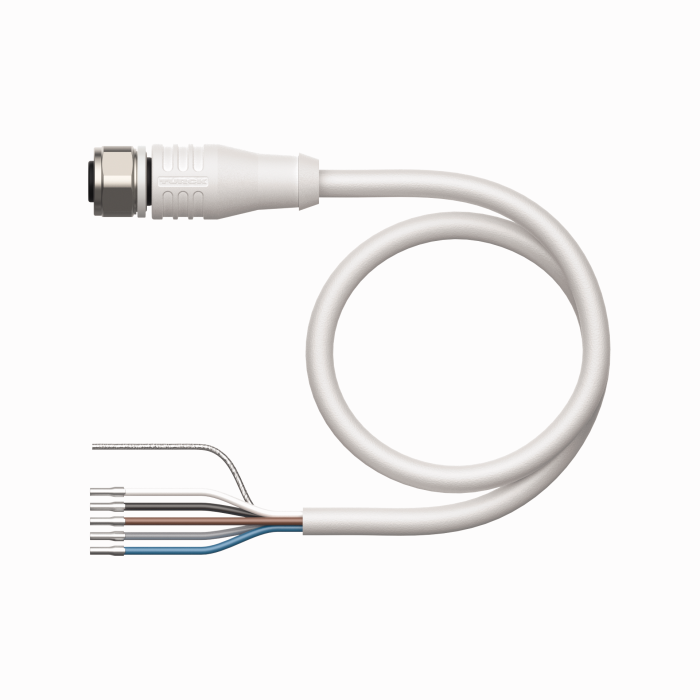

Mounting accessories
