Product RKCV5500-2M/S2500
Cable for RFID Application in the Food Industry
Connection Cable
Order number: 6633179- M12 female connector, straight, stainless steel

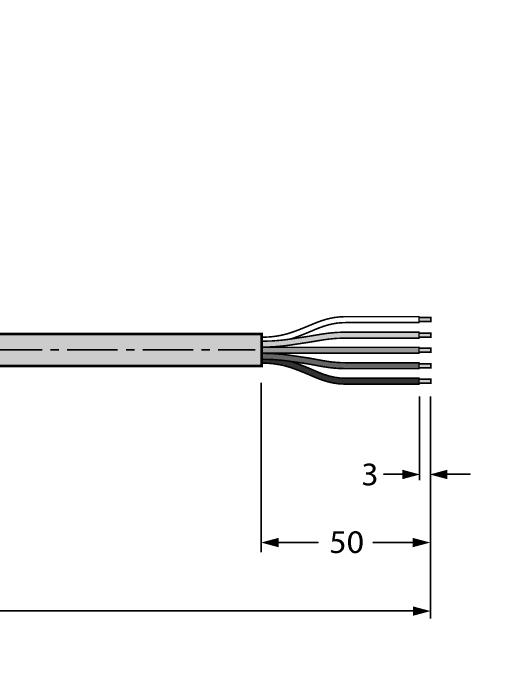

- End open
- Jacket material: PPEDEM
- Jacket color: white
- Suitable for drag chain use
- Oil-resistant in accordance with EN 60811-2-1
- Halogen-free and silicone-free
- Particularly resistant to abrasion
- RoHS II/REACH-compliant
- Protection class: IP67, IP69K
- Cable length: 2.0 m

General data
EAN | 4047101506167 |
eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
Customs tariff number | 85444290900 |
Country of origin | CN |
Weight | 1 g |
Technical Data
Application | RFID |
Design | Connection Cable |

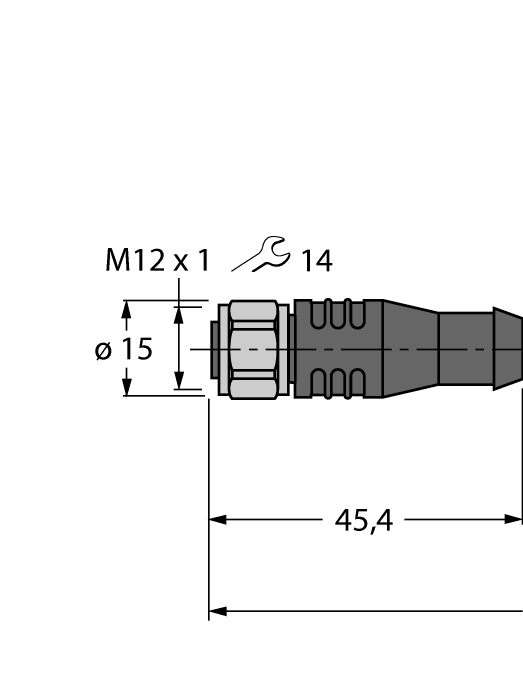

Connector A | Female, M12 × 1, Straight, A-coded |
Number of Pins | 5 |
Connector body | Plastic, PP, White |
Coupling nut/screw | Stainless Steel, V4A, Nickel-plated |
Voltage | 60 V |
Current | 4 A |
Cable diameter | Ø 8 mm |
Cable length | 2.0 m |
Cable jacket | PPEDEM, White |
Number of Conductors | 2 |
Protection class | IP67, IP69K |
