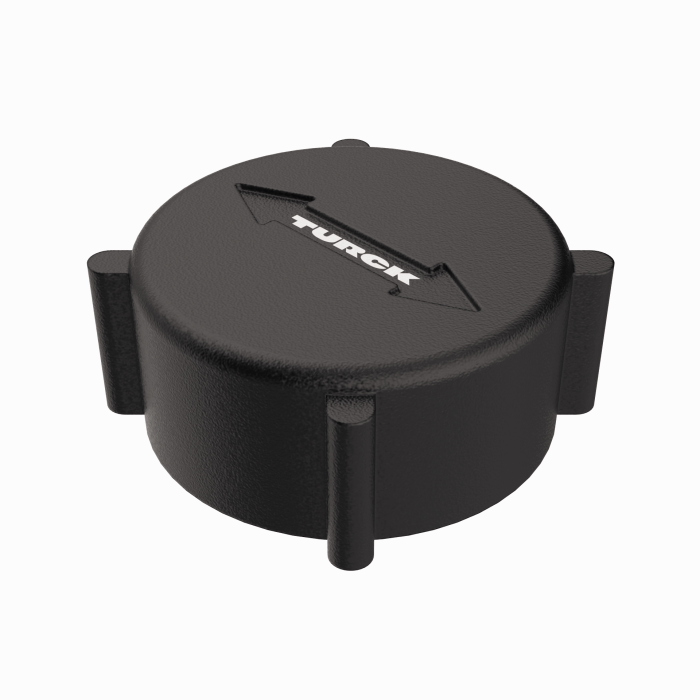

Product  TW-R12-M-B146

HF Tag

Order number: 7030500
    • Tag for direct mounting on metal
    • The mounting position (arrow) as well as the alignment of the tag towards the read/write head must be observed under all circumstances in order to achieve a maximum read/write distance
    • When installed recessed in metal by 1 mm, the write/read distance reduces to 30%
    • Extended storage temperature range: The tags must undergo adequate stress tests within the proposed temperature processes before deployment.
    • The following stress test was performed on this tag:  Cyclic temperature stress: 5 min. at 20 °C – 5 min. at 160 °C.Number of tested cycles: 100TThis successfully performed test does not imply suitability for a specific high-temperature application, but merely serves as proof of the basic usability.
    • EEPROM, memory 146 byte
    • For direct mounting on metal

General data

EAN 4047101273502
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 85235110000
Country of origin TH
Weight 20 g

Technical Data

Technology HF RFID
Memory type EEPROM
Design Hard tag

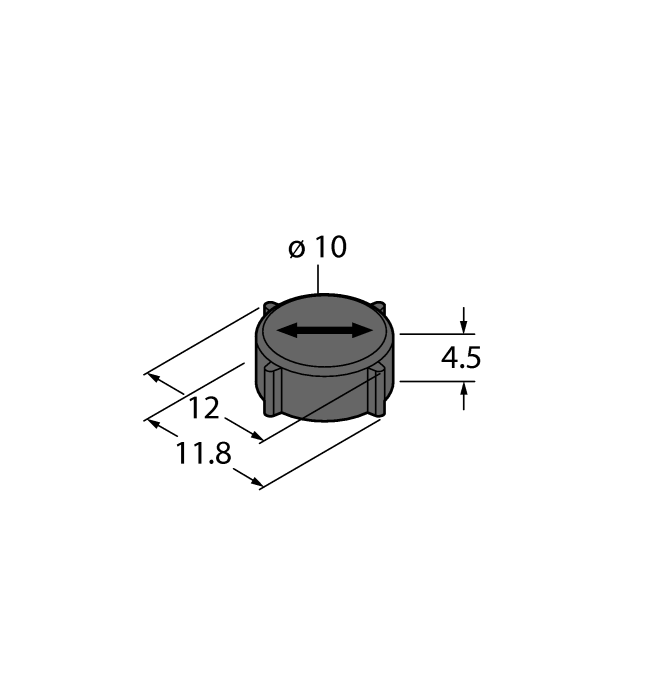

Housing diameter Ø  12  mm
Mounting In metal,On metal
Memory 146  Byte
Freely usable memory 128  Byte
Housing material Plastic, PPS Epoxy
Active area material Plastic, PPS, black
Temperature during read/write access -40…+85 °C
Temperature outside detection range -40…+130 °C
Protection class IP68
